Product Introduction

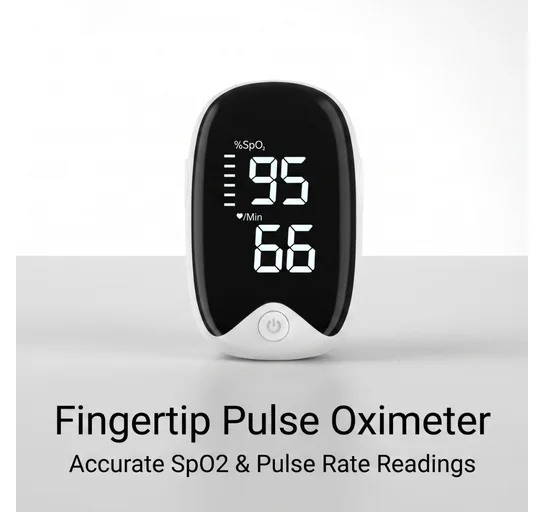

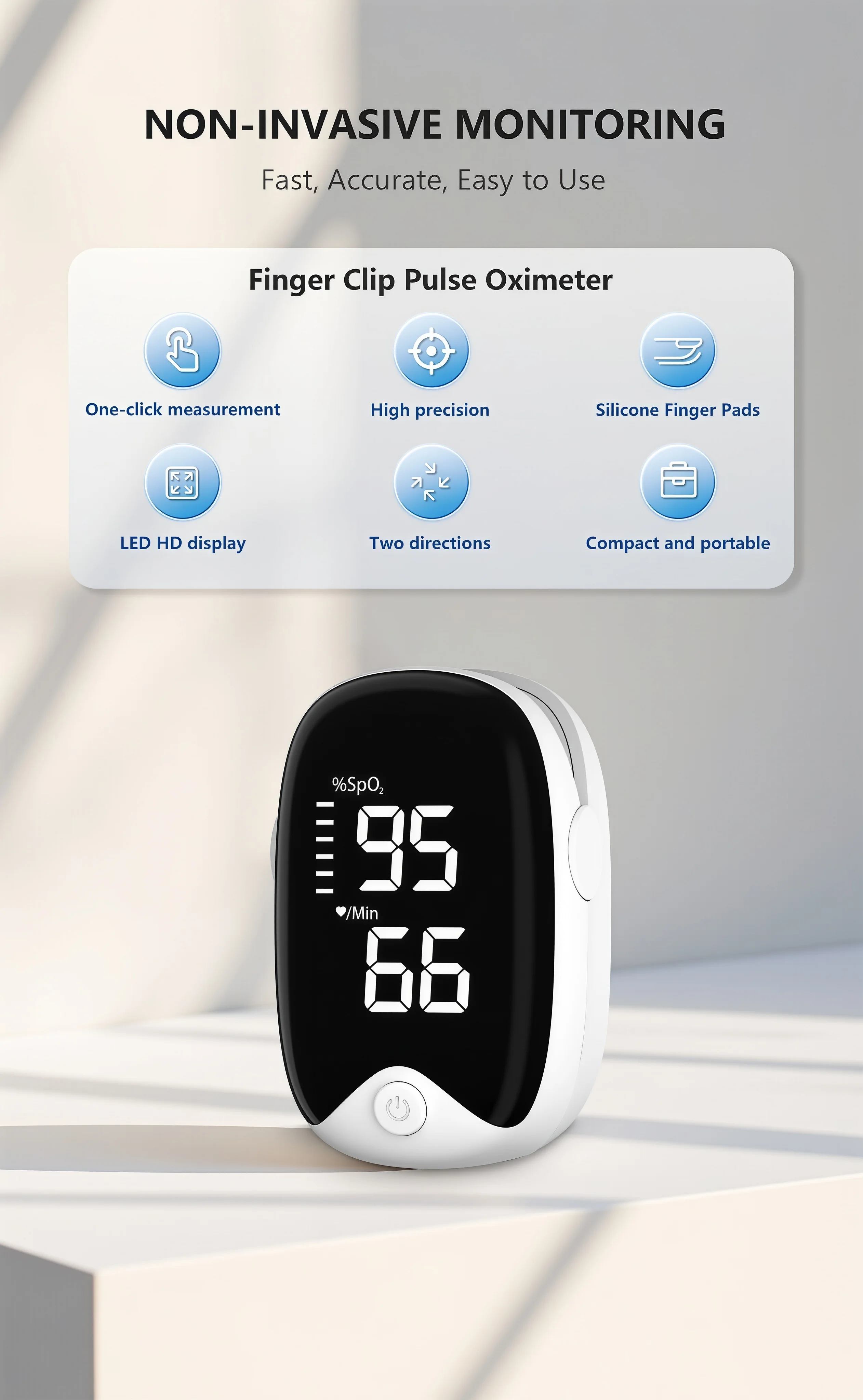

Our Fingertip Pulse Oximeter delivers fast, accurate SpO₂ and pulse rate measurements with optional LED or TFT display versions. The TFT version features a vibrant 4color display with 4direction rotatable screen for optimal viewing from any angle, while the LED version offers a clean, energyefficient white display with 2direction rotation.
The Fingertip Pulse Oximeter is indicated for noninvasive spotchecking of arterial oxygen saturation (SpO₂), pulse rate, and perfusion index (PI). Available in two display versions: LED display (white, 2direction rotatable, 810 second test) and TFT display (4color, 4direction rotatable, 58 second test). The TFT version offers enhanced color differentiation and faster reading for a more premium user experience. The perfusion index (PI) provides assessment of peripheral perfusion strength, aiding in reliable measurement under lowperfusion conditions.
Specifications
| Product Specifications | |

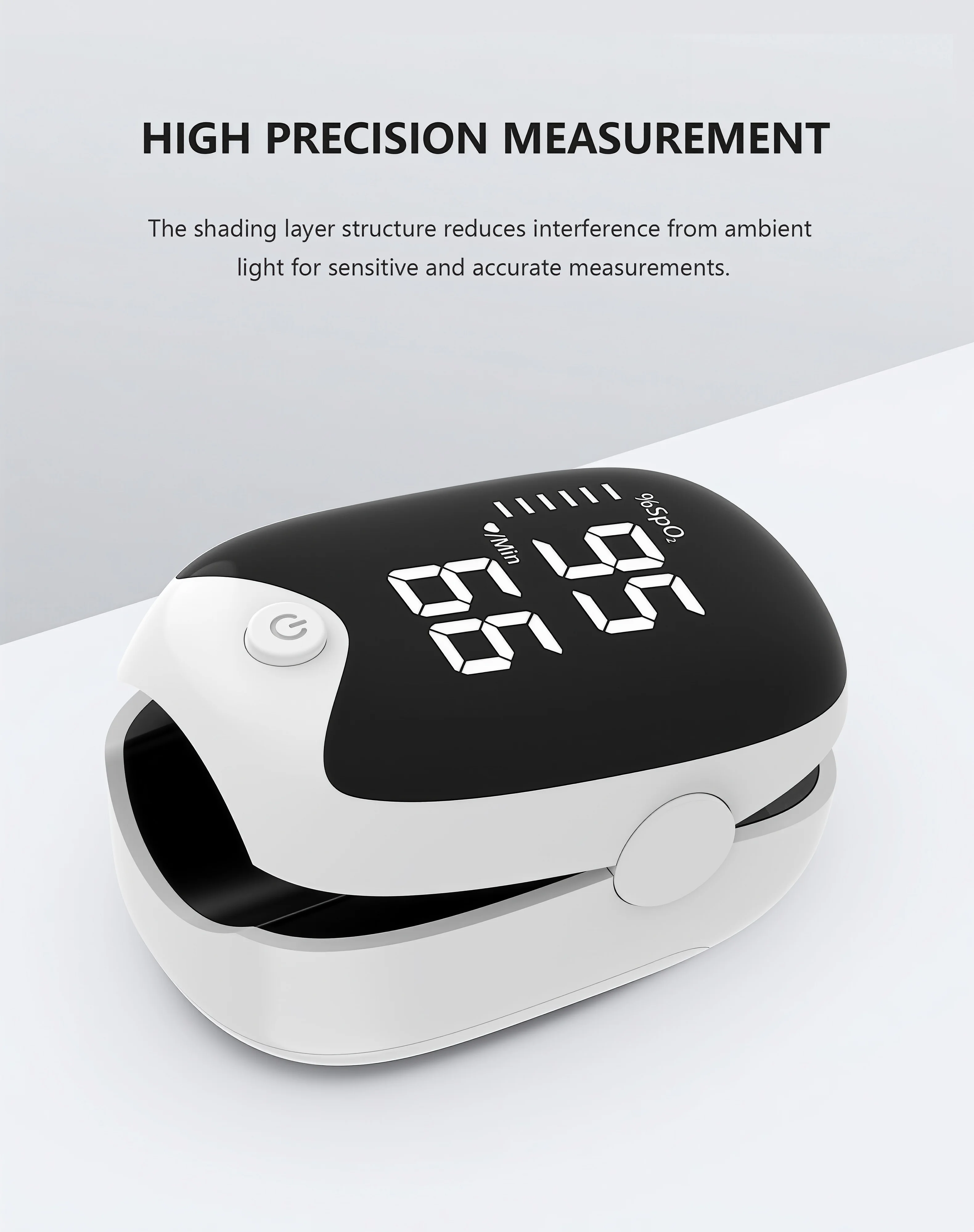

| Model | AD901( LED display Version ) |
| Color | White |

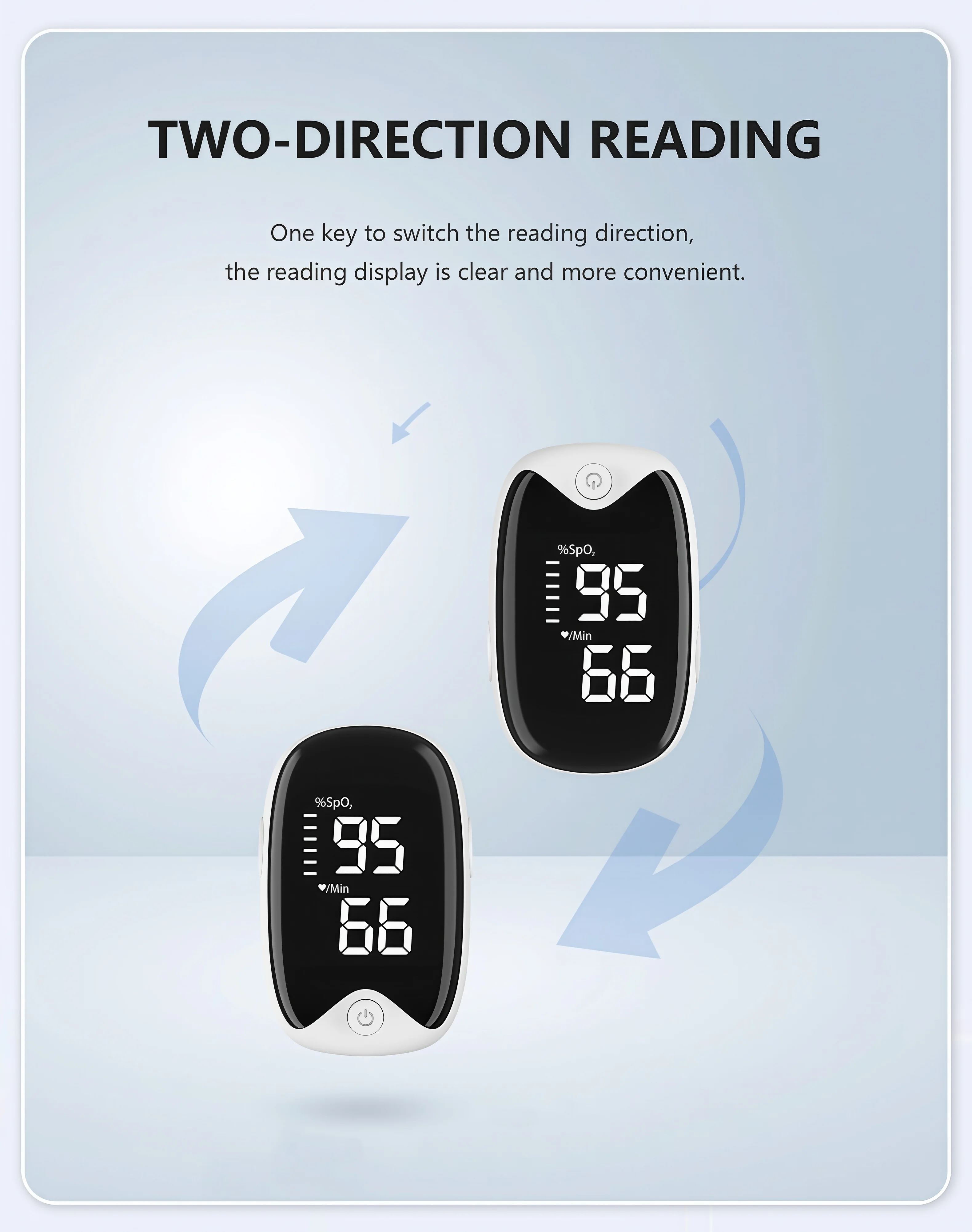

| Screen Orientation | 2-direction Rotatable |
| Test Time | 8-10 second Quick Test |
| Blood Oxygen Saturation | 65%-100% |
| Blood Oxygen Saturation Accuracy | Within the range of 70% to 100%, the allowable absolute error is ±2%; No definition for values less than 70% |
| Pulse Rate | 30-250bpm |
| Pulse Rate Accuracy | ±2bpm or ±2%, whichever is larger |
| Perfusion Index | 0.3%-20% |
| Perfusion Index Accuracy | For the measurement range of 1%-20%, the allowable absolute error is ±1%; For the measurement range of 0.3%-0.9%, the allowable absolute error is ±0.2%. |
| Product Specifications | |
| Product Name | Pulse Oximeter |

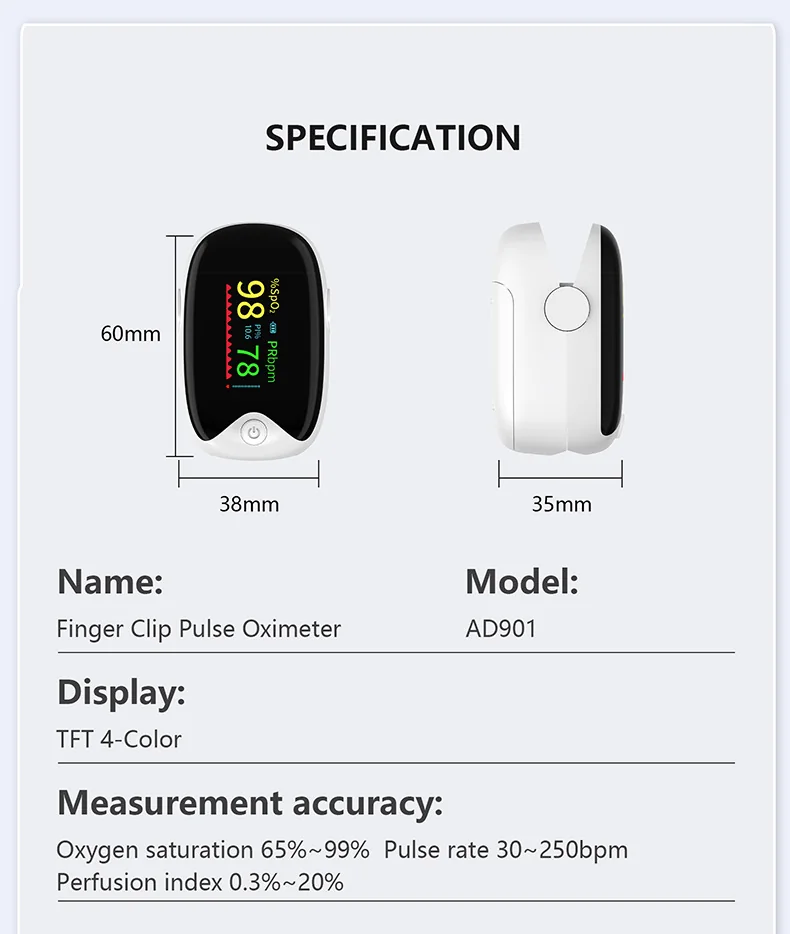

| Model | AD901( TFT display Version ) |
| Color | 4-Color |

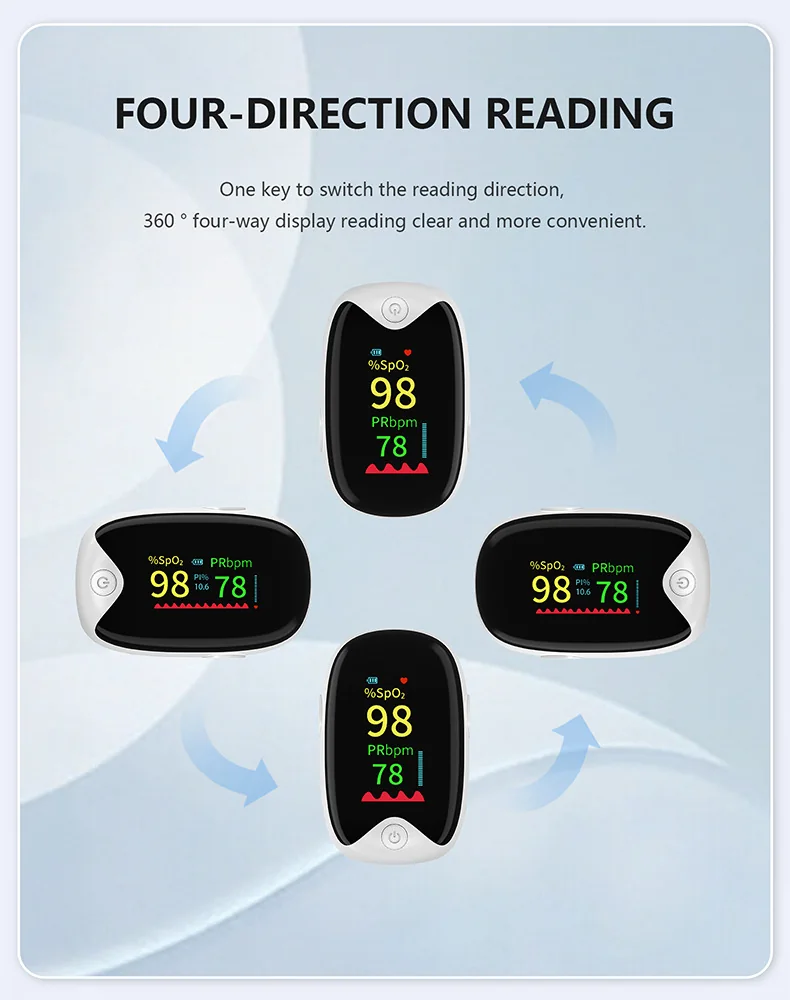

| Screen Orientation | 4-direction Rotatable |
| Test Time | 5-8 second Quick Test |
| Blood Oxygen Saturation | 65%-100% |
| Blood Oxygen Saturation Accuracy | Within the range of 70% to 100%, the allowable absolute error is ±2%; No definition for values less than 70% |
| Pulse Rate | 30-250bpm |
| Pulse Rate Accuracy | ±2bpm or ±2%, whichever is larger |
| Perfusion Index | 0.3%-20% |
| Perfusion Index Accuracy | For the measurement range of 1%-20%, the allowable absolute error is ±1%; For the measurement range of 0.3%-0.9%, the allowable absolute error is ±0.2%. |
Applications

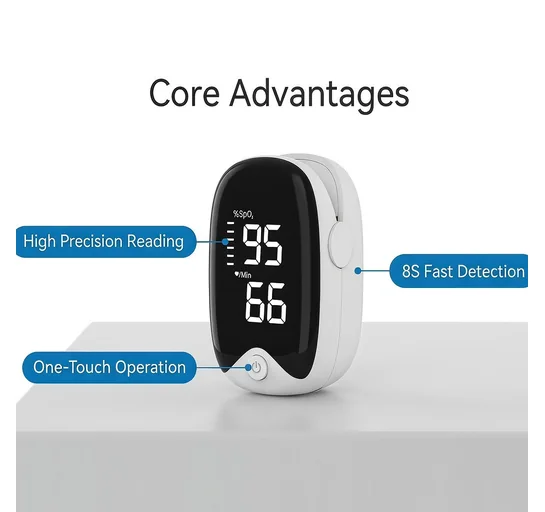

Product Advantages

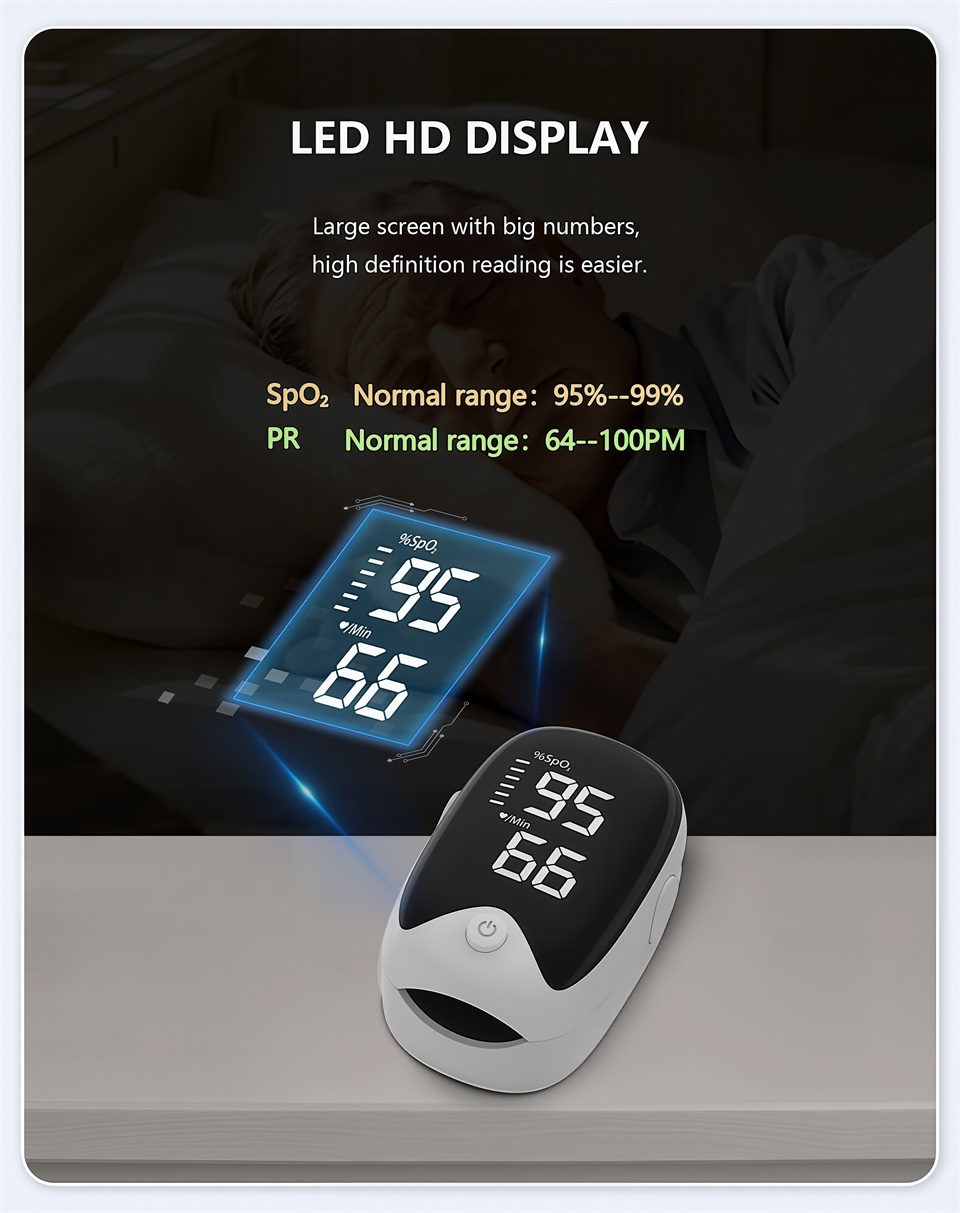

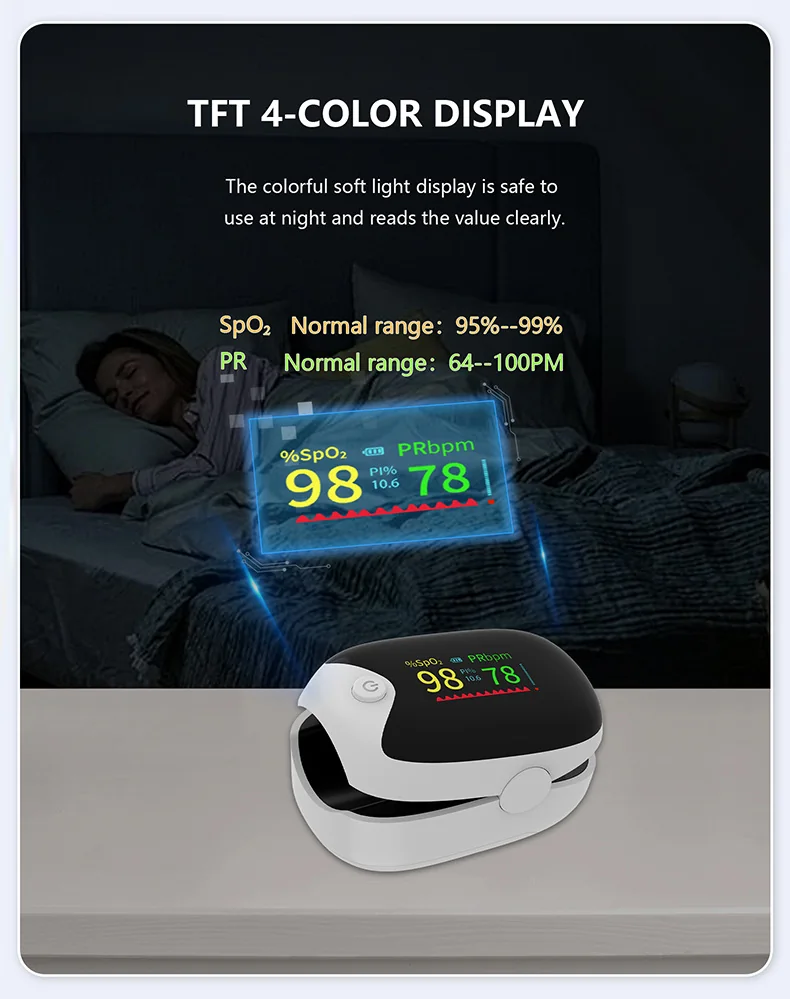

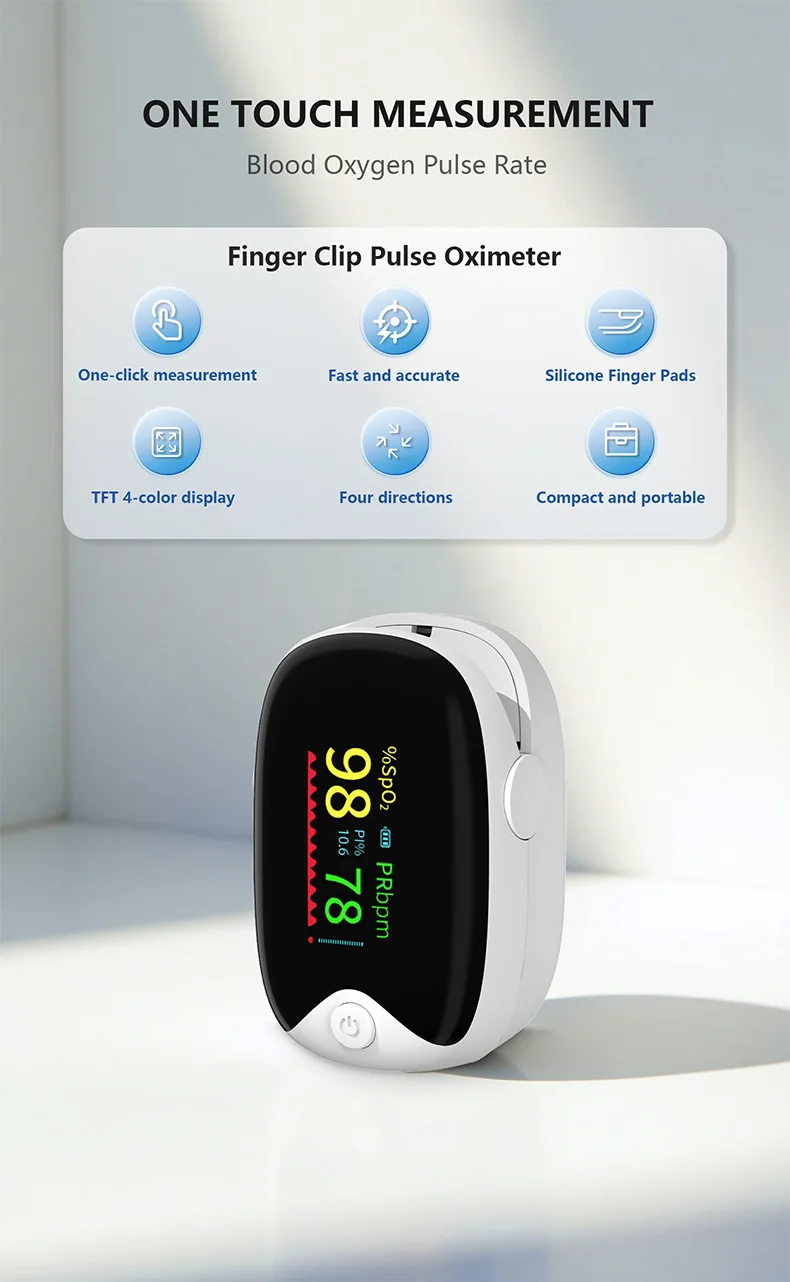

Two display options: LED (white) or TFT (4color).

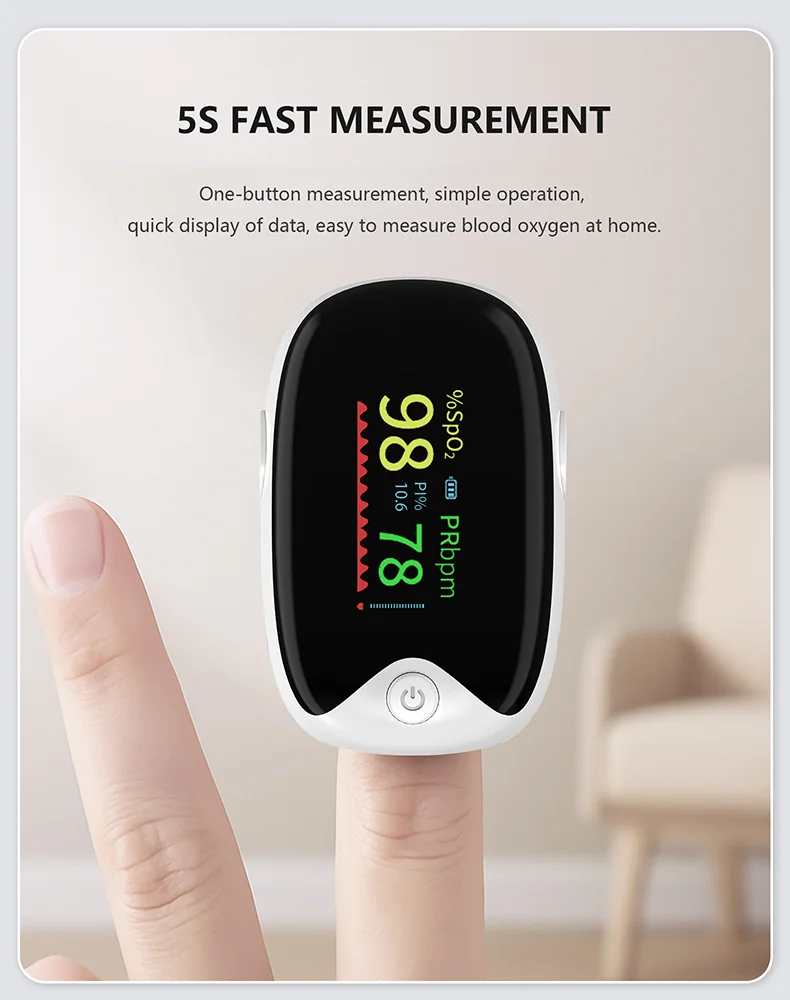

TFT version: 4direction rotatable, 5-8 sec test.
PI (Perfusion Index) function for perfusion assessment.
Lightweight and portable (28.4g).
Auto poweroff for battery conservation.
Use Method
Open the battery compartment and insert 2 AAA batteries correctly.
Press the clip to open the device.

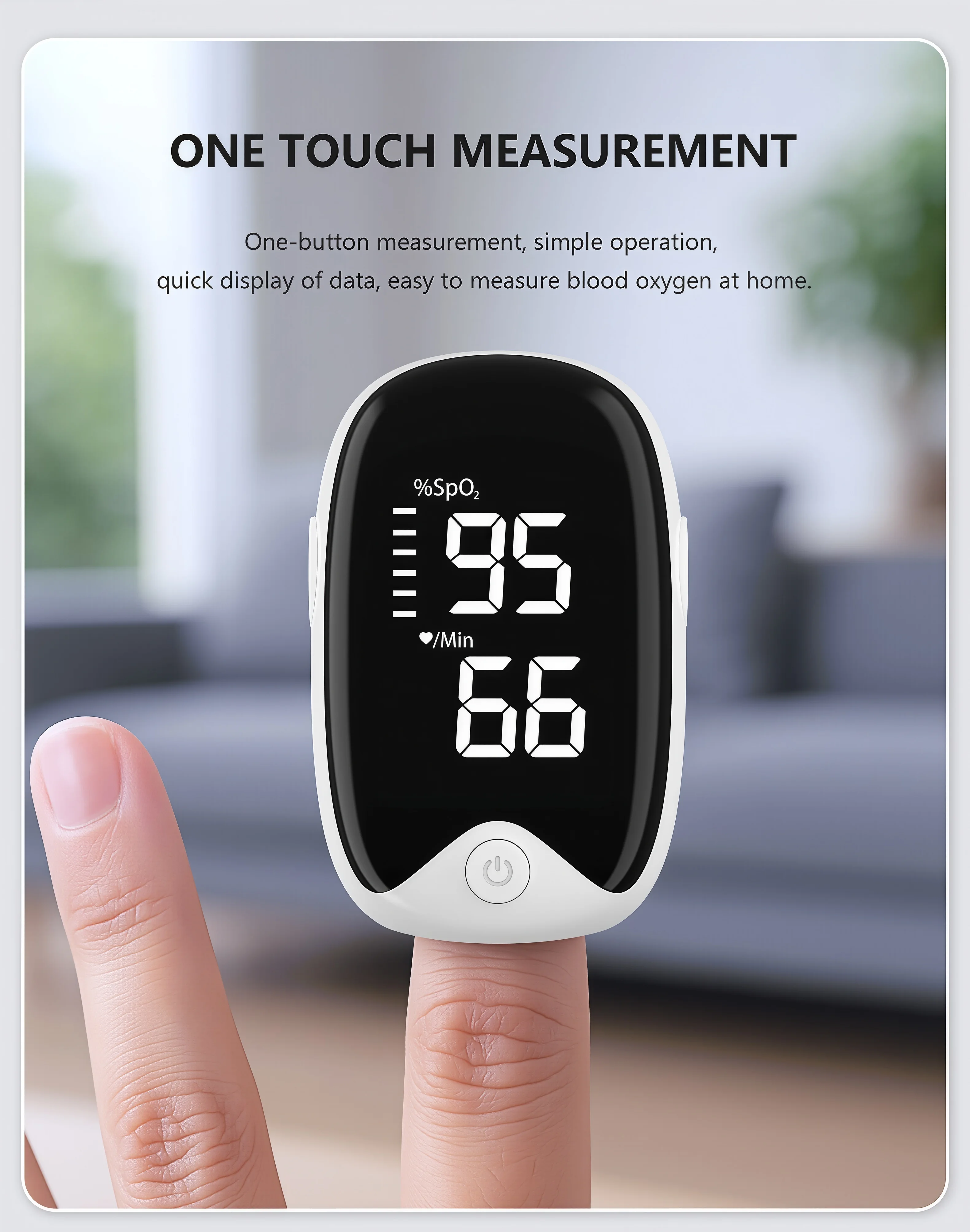

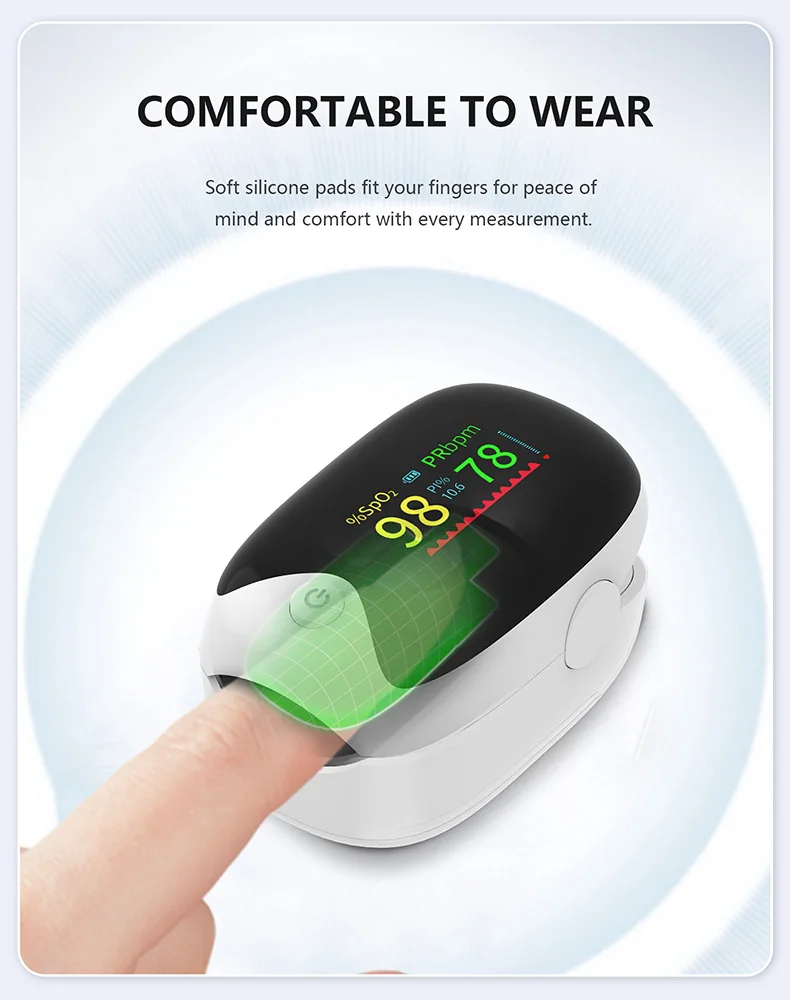

Place your index finger fully into the opening, with the nail facing up.
Release the clip to close. The device will automatically power on.
Wait for the measurement to stabilize (approx. 8 seconds) and read the SpO₂ and pulse rate values.
Remove your finger; the device will automatically power off after 8 seconds.

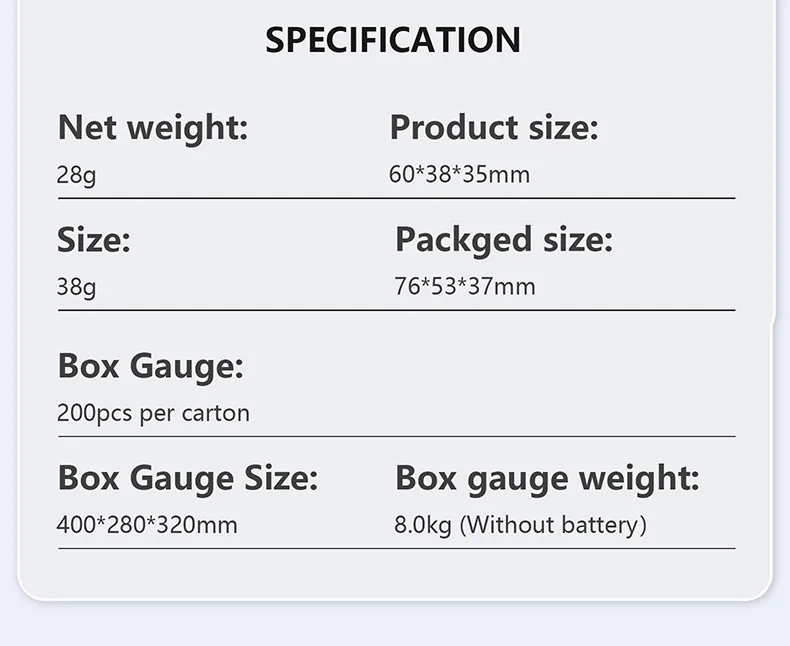

Packaging Specifications
| Product Carton Specifications | |

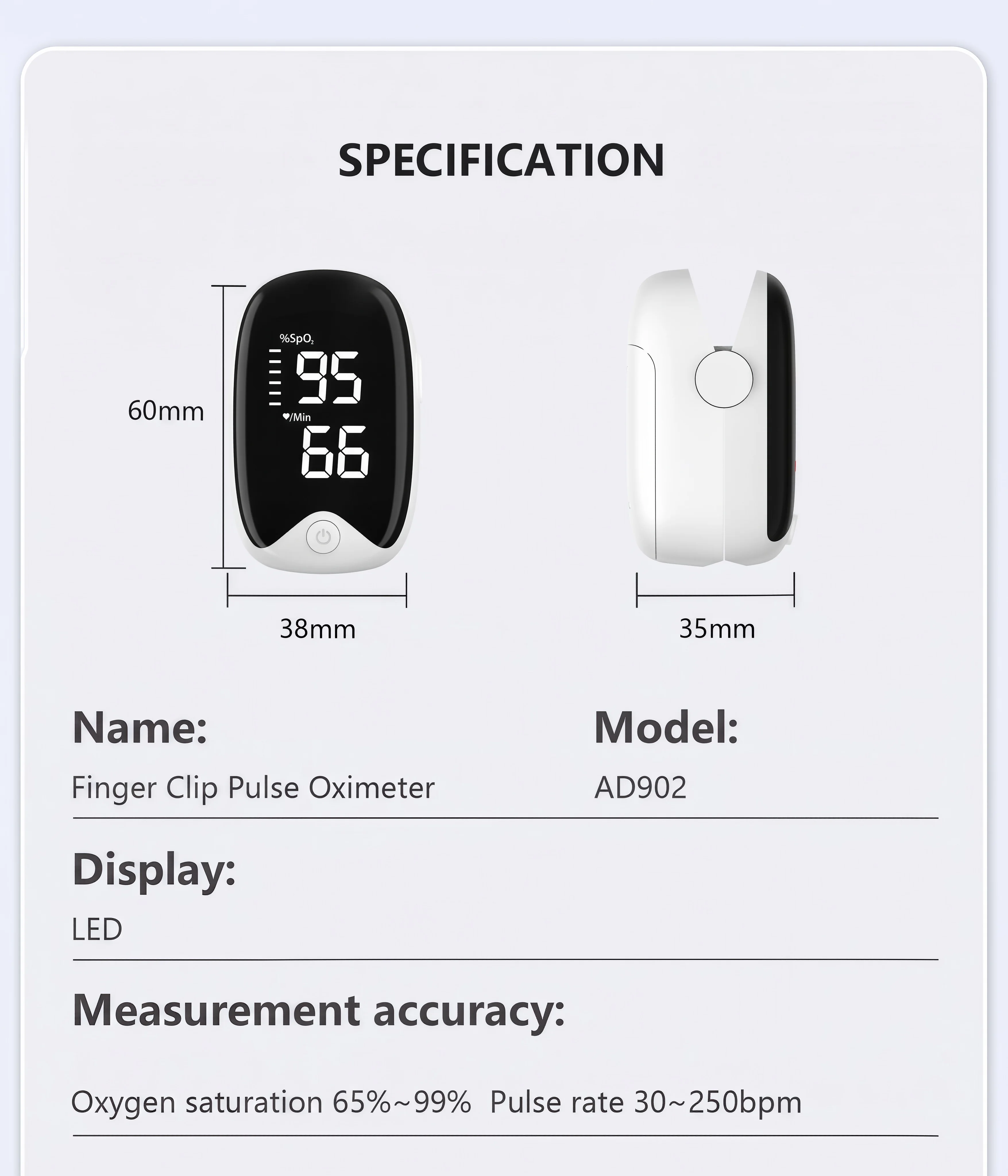

| Product Net Weight | 28.4g |
| Color Box Size (cm) | 8.4*5.7*3.6 |
| Gross Weight (Including Color Box ) | 46g |
| Carton Size (cm) | 43*30*27cm |
| Carton Gross Weight | 8.4 Kg/ctn |
| Pack Qty | 200 pcs/ctn |
