Product Introduction

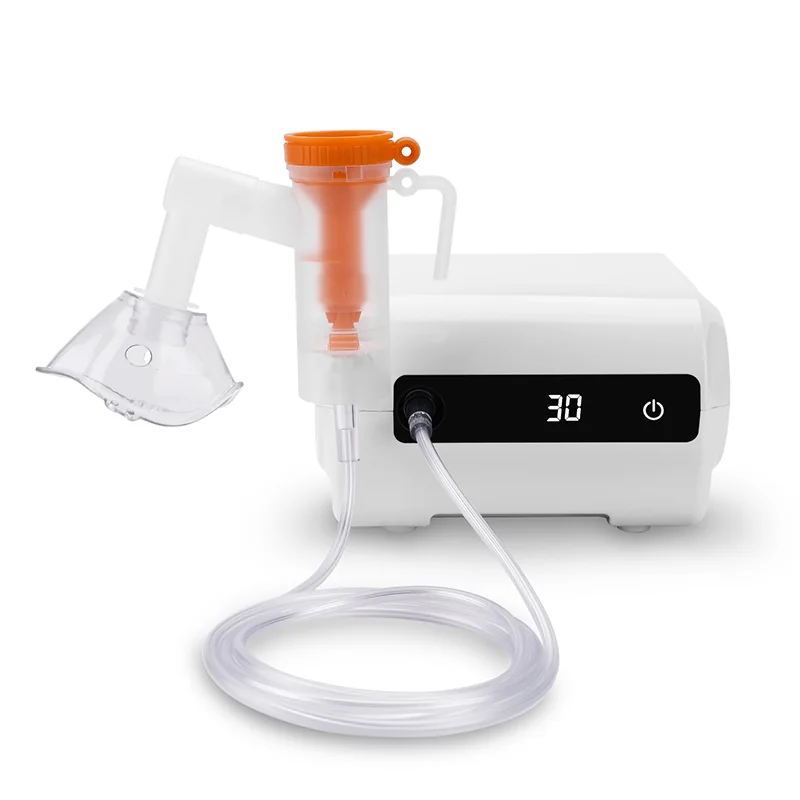

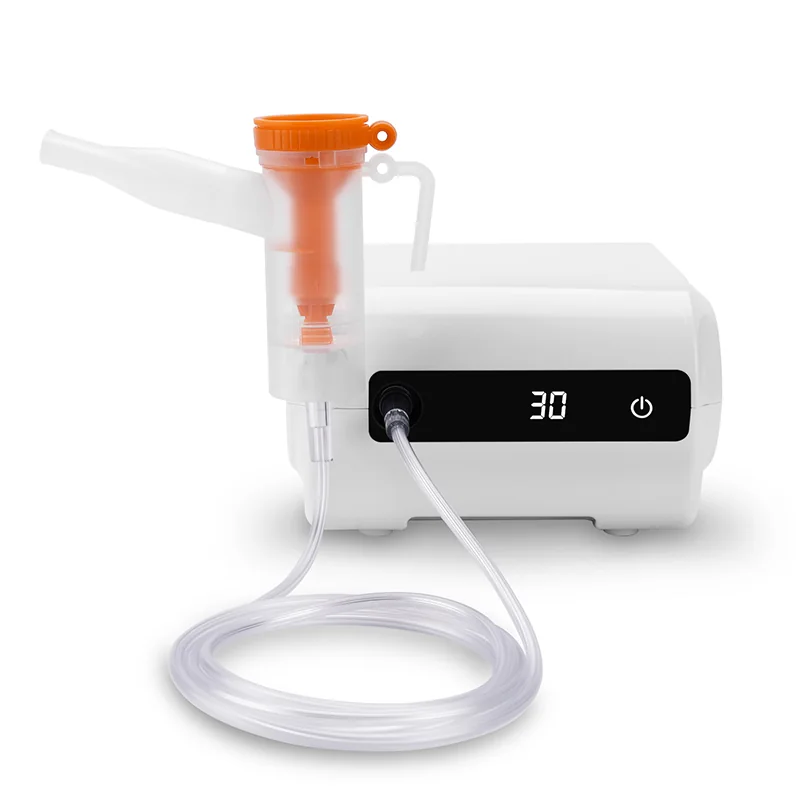

Our Compressor Nebulizer delivers reliable, high-performance respiratory therapy with the added convenience of a digital timer featuring three preset durations (10, 20, 30 minutes). The clear digital display allows patients and caregivers to easily monitor treatment time, ensuring consistent and complete medication delivery. Ideal for patients requiring regular, timed respiratory therapy sessions.
The Compressor Nebulizer is indicated for the treatment of respiratory conditions including asthma, bronchitis, COPD, and other upper and lower respiratory tract infections. The digital timer with three preset durations (10, 20, 30 minutes) allows patients and caregivers to easily set and monitor treatment sessions, ensuring consistent and complete medication delivery. The clear digital display shows remaining treatment time, making it ideal for patients who require regular, timed therapy sessions. The oil-free high-efficiency piston pump delivers a consistent liter flow of ≥6.7 L/min, with an atomization rate of ≥0.25 mL/min and fine particle size distribution (0.5–10 μm) to ensure effective medication deposition in the airways. Manufactured in ISO 13485-certified facilities with CE MDR and FDA clearances.
Specifications
| Product Specification | |
| Model No. | CNB69021S |
| Liter Flow Range | 6.7 L/min |
| Atomization Rate | ≥ 0.25 mL/min |
| Sound Level | 65 dB(A) |
| Particle Size | 0.5–10 μm |
| Operation Humidity Range | 15–80% RH |
| Operating Pressure Range | 9.5–19 psi |
| Compressor Pressure Range | 22–58 psi |
| Use Life | 5 Years |
Applications
Product Advantages
Digital timer with 3 preset durations (10/20/30 min).
Clear digital display for easy monitoring.
Oil-free high-efficiency piston pump for consistent performance.
Fine mist particles (0.5–10 μm) for effective delivery.
Low-noise operation (≤65 dB).
Ideal for patients requiring regular timed therapy.
Use Method
Place the nebulizer on a flat, stable surface. Connect the air tube to the nebulizer outlet.
Open the nebulizer cup and add the prescribed medication. Do not exceed the maximum fill line.
Close the nebulizer cup securely and attach the mouthpiece or mask.
Plug the device into a suitable power outlet.
Press the timer button to select 10, 20, or 30 minutes.
Press the power switch to start treatment. The digital display will show the remaining treatment time.
Sit comfortably and breathe normally. The device will automatically shut off when the set time is complete.
The device will stop automatically at the end of the timer. Clean all components according to the cleaning instructions.
Packaging Specifications
| Product Carton Specification | |
| Product Weight (kg) | 1.8 |

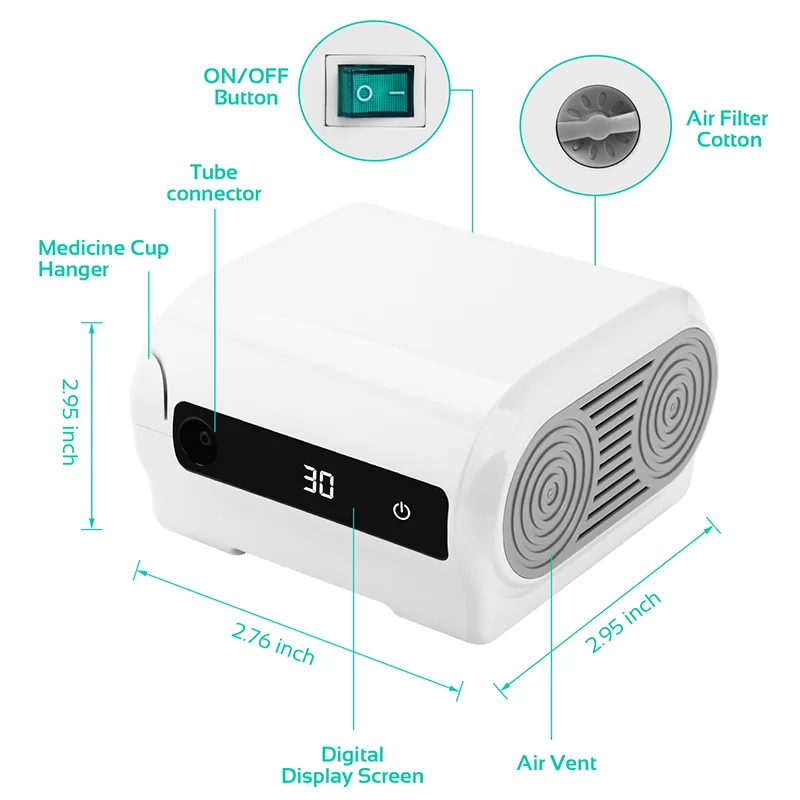

| Product Size | 205×150×100 mm |
| Carton Dimensions (L×W×H, cm) | 52×42×28 |
| Carton Gross Weight (kg) | 14 |
| Pack Qty | 8 pcs/ctn |
