Product Introduction

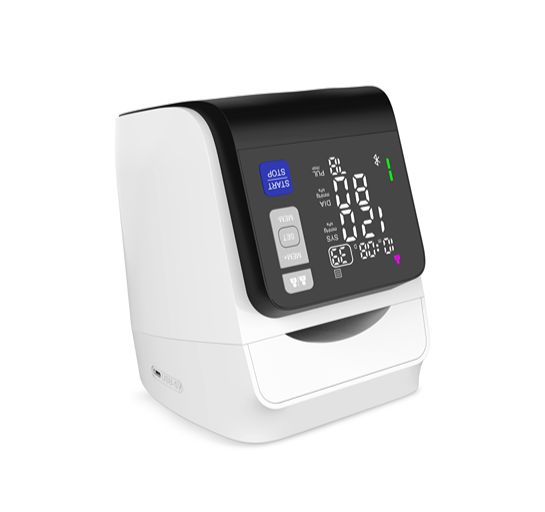

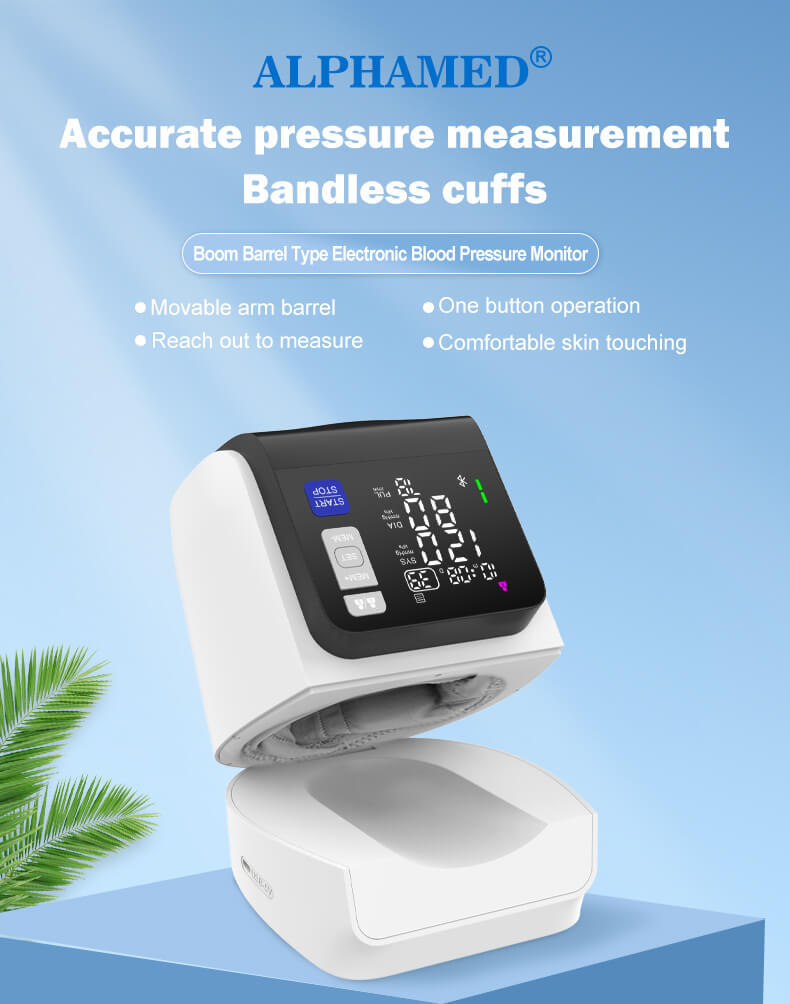

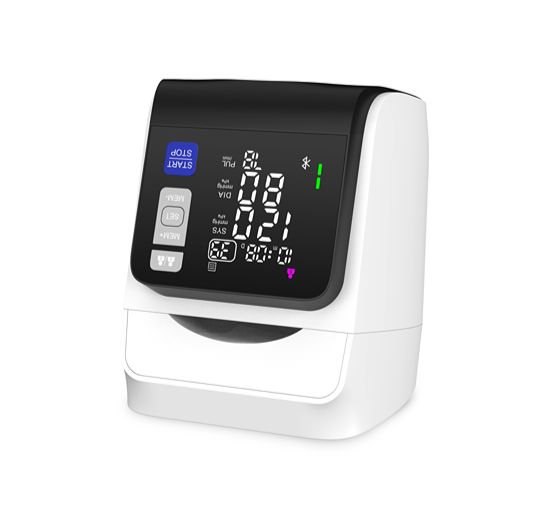

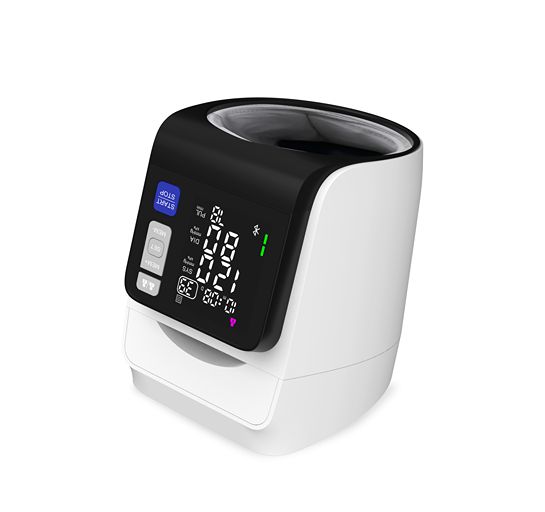

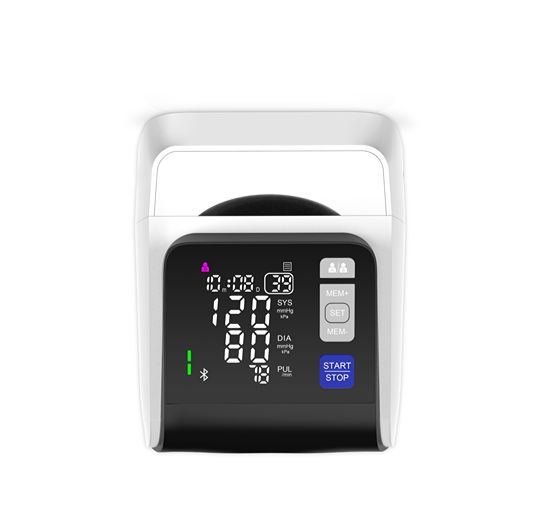

Our Tunnel-Type Blood Pressure Monitor is designed for high-traffic screening environments such as pharmacies, clinics, and health checkpoints. Featuring a sleeve-free, one-hand measurement tunnel design, it eliminates the need for cuff wrapping — making it quick, hygienic, and easy to use. The large LED screen provides clear, glanceable readings, while the multi-user memory function supports efficient patient data management.
The Tunnel-Type Blood Pressure Monitor is indicated for professional use in pharmacies, clinics, and community health screening points. The innovative tunnel design allows for one-hand, sleeve-free measurement — no cuff wrapping required, reducing preparation time and user error. The large multi-color LED display with extra-large digits ensures clear visibility for both operators and patients. Supports 4 user profiles with 99 readings each, with one-touch recall for efficient data tracking. Bluetooth connectivity option allows seamless data transfer to EMR systems or mobile devices. Multi-language interface (English, Spanish, French, Italian, German) supports international use. Manufactured in ISO 13485-certified facilities with CE MDR and FDA 510(k) clearances.
Specifications
| Product Specifications | |
| Measurement methods | Oscillometric method |
| Measuring range | Blood pressure value:0 ~ 299 mmHg (0 ~ 39.9 kPa) |
| Pulse rate:40 ~ 199 beats/min | |
| Static measurement | Blood pressure value:±3 mmHg (±0.4 kPa) |
| Accuracy | Pulse rate:±5% of reading value |
| LED display | Pressure:unit mmHg / kPa |
| Pulse:pulse per minute,display three digits | |
| Symbols:memory / average / pulse / low battery / arrhythmia reminder | |
| Storage capacity | Can store 99 sets of memory values for 4 people |
| Power off method | Manual shutdown / automatic shutdown after 3 ± 1 minutes of inactivity |
| Electric shock protection | Class II equipment (internal powered equipment when not using a power adapter),Type BF applied part |
| Disinfection and sterilization methods | Clean according to manufacturer’s recommendations |
| Battery life | Under normal temperature conditions,the high-performance dry battery can be used about 300 times |
| Service Life | 5 Years |
Applications
Product Advantages

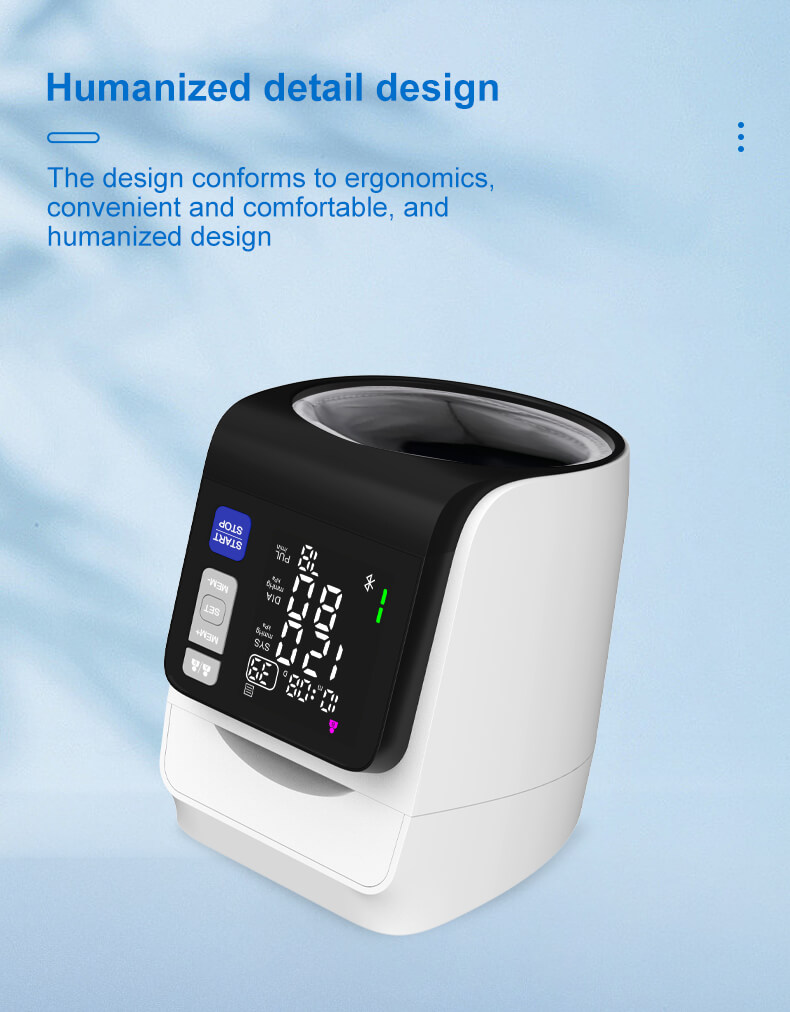

Tunnel design: sleeve-free, one-hand operation.

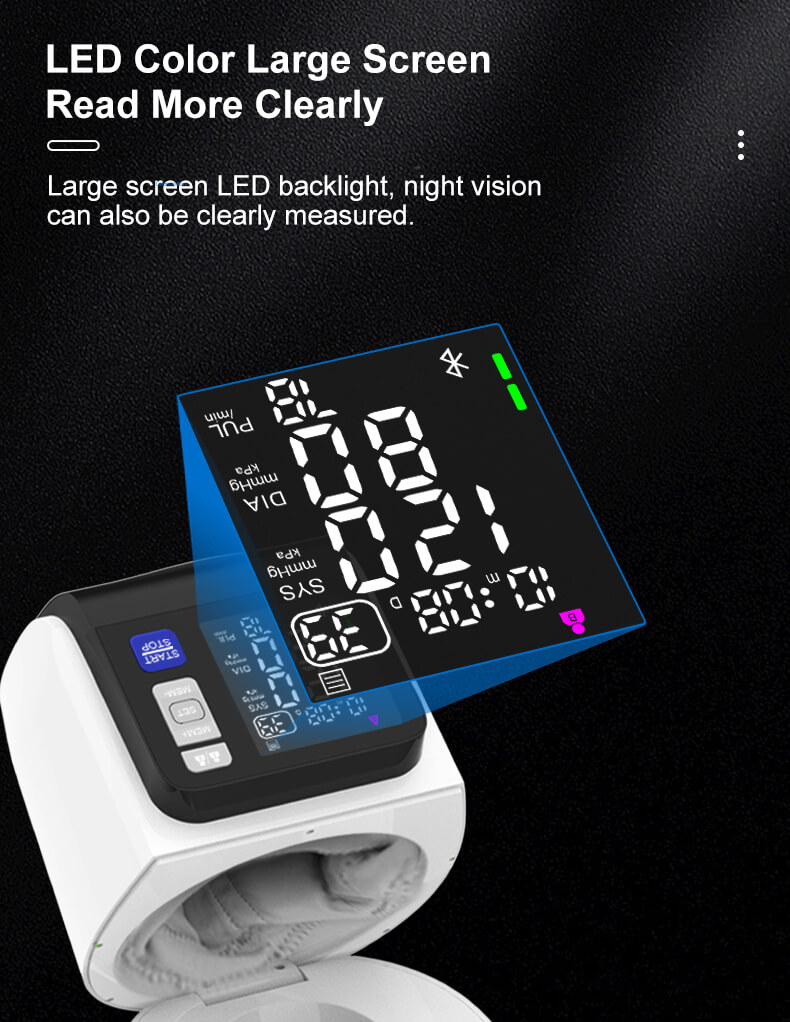

Large multi-color LED display with extra-large digits.

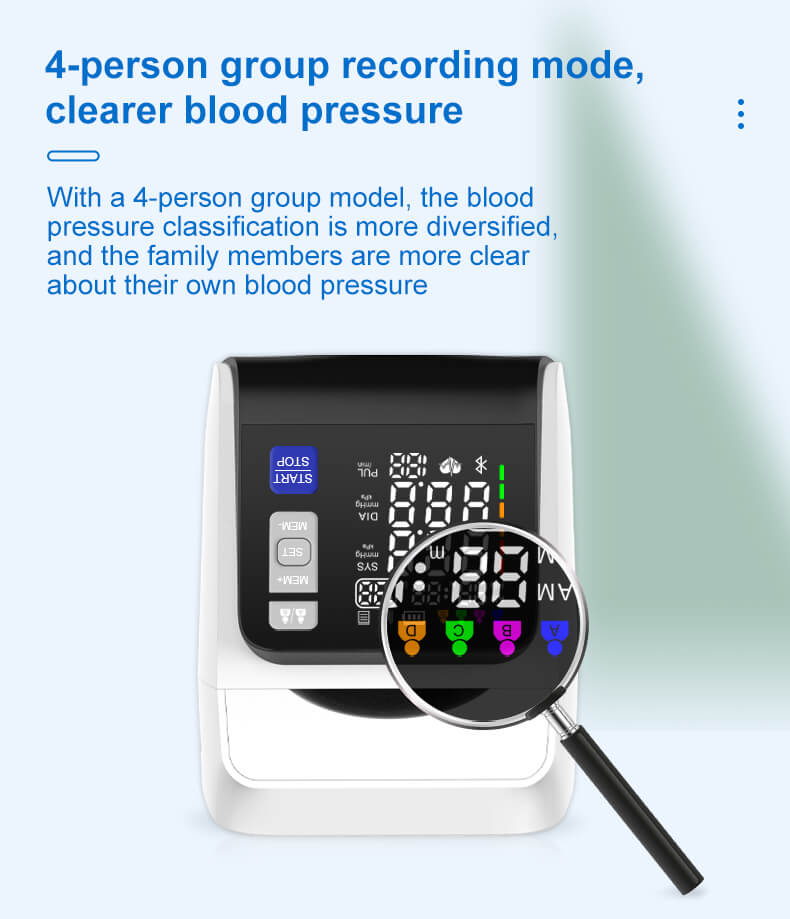

4 user profiles × 99 readings memory with one-touch recall.
Multi-language interface (EN/ES/FR/IT/DE).
Bluetooth connectivity option for data integration.
Use Method

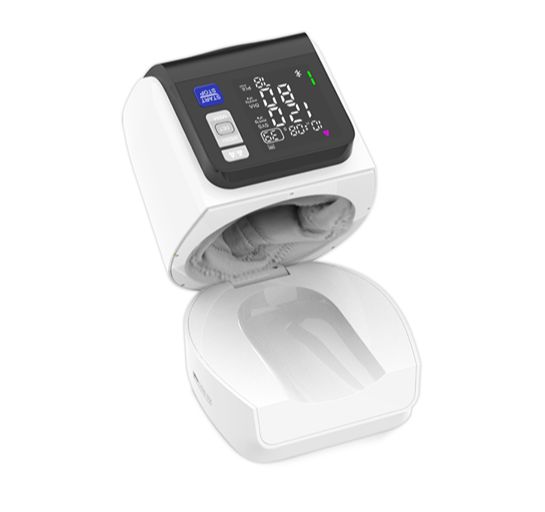

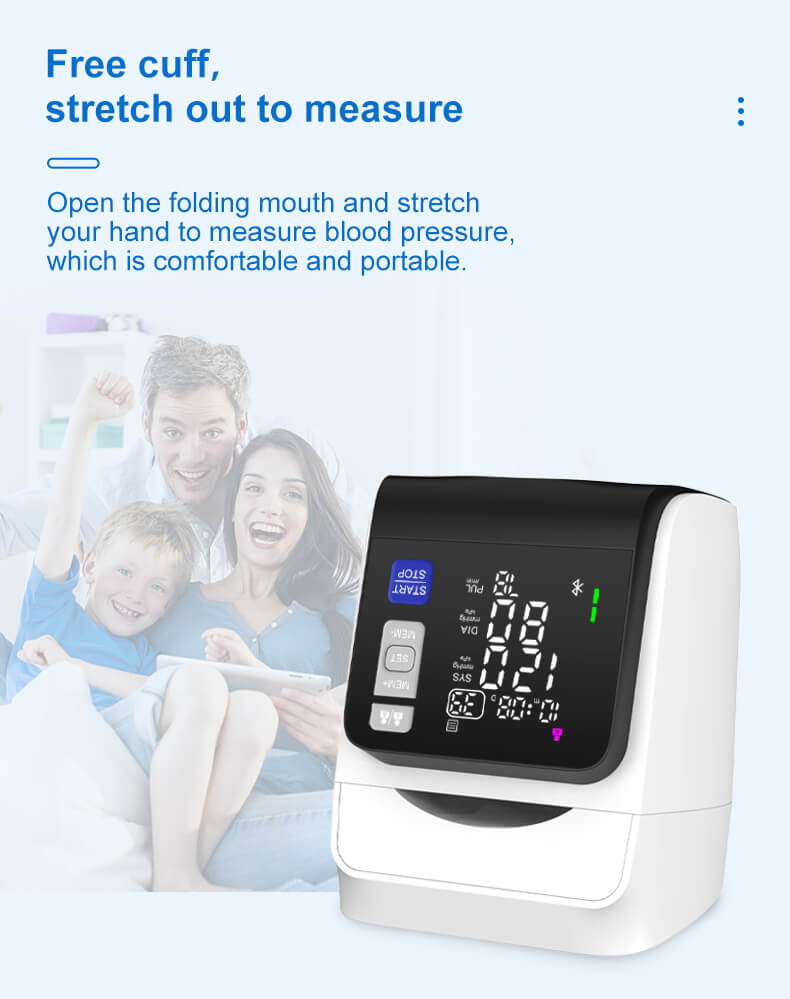

Insert your arm into the tunnel opening. No cuff wrapping is needed.
Rest your arm comfortably with the palm facing up.
Press the START button. The monitor will automatically inflate and measure.
Results are displayed on the large LED screen with clear, color-coded indicators.
Readings are automatically stored in the selected user profile.
Press the MEM button to view previous readings.
Packaging Specifications
| Product Carton Specifications | |
| Main Unit Weight | Approx.1090g(without battery) |
| Color Box Size (cm) | 22*20*20 |
| Gross Weight (Including Color Box ) | 1.53kg (without batteries) |
| Carton Size (cm) | 44.6*41*42.6 |
| Carton Gross Weight | 12.3/13.3kg |
| Pack Qty | 8 pcs/ctn |
Product Video

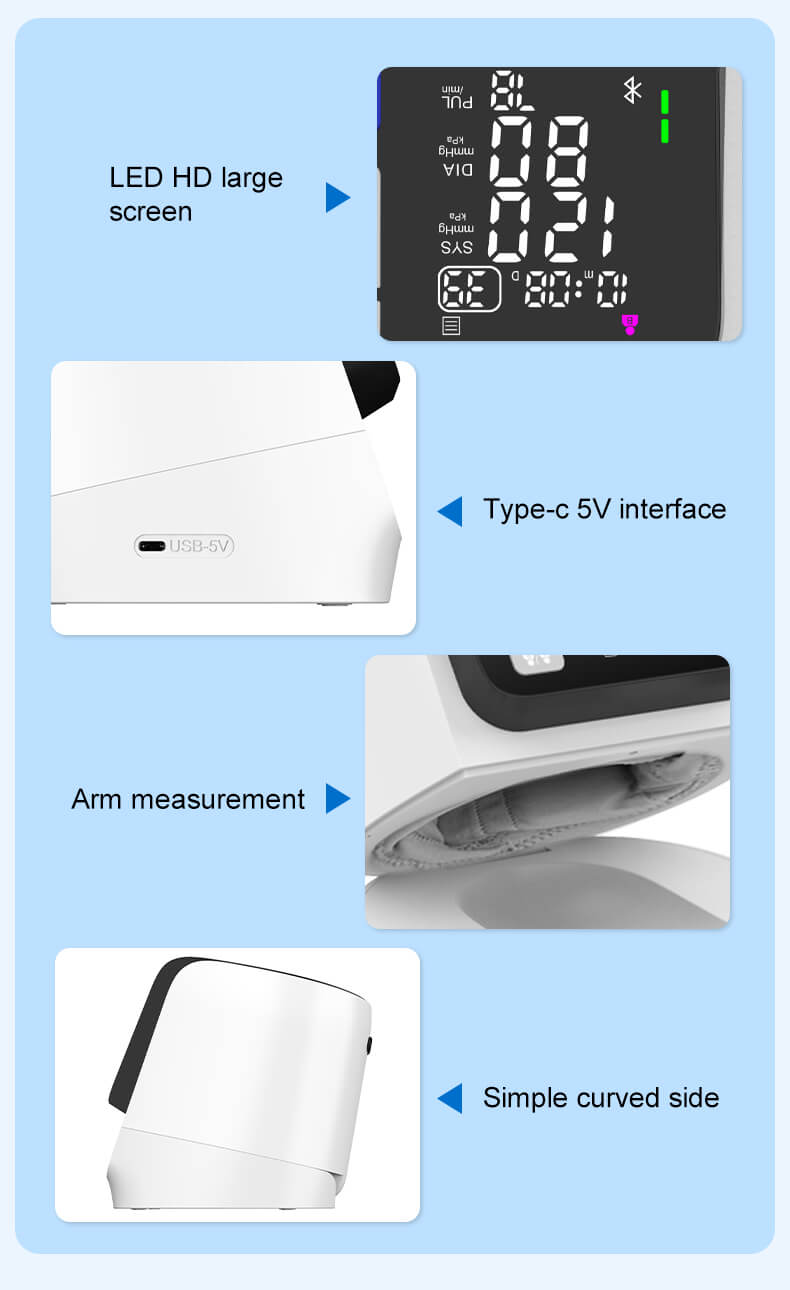

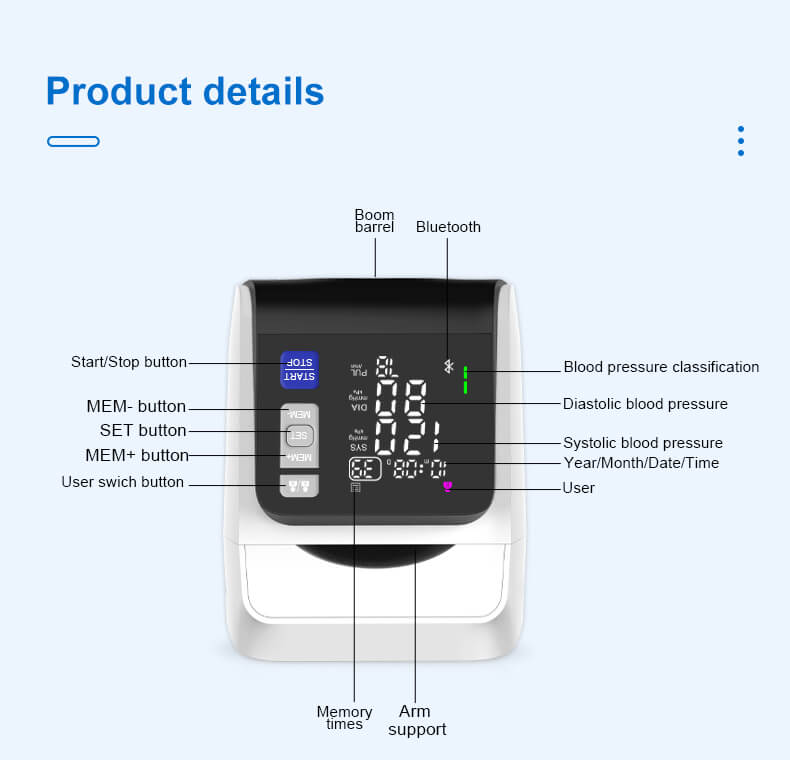

Product Details
