Product Introduction

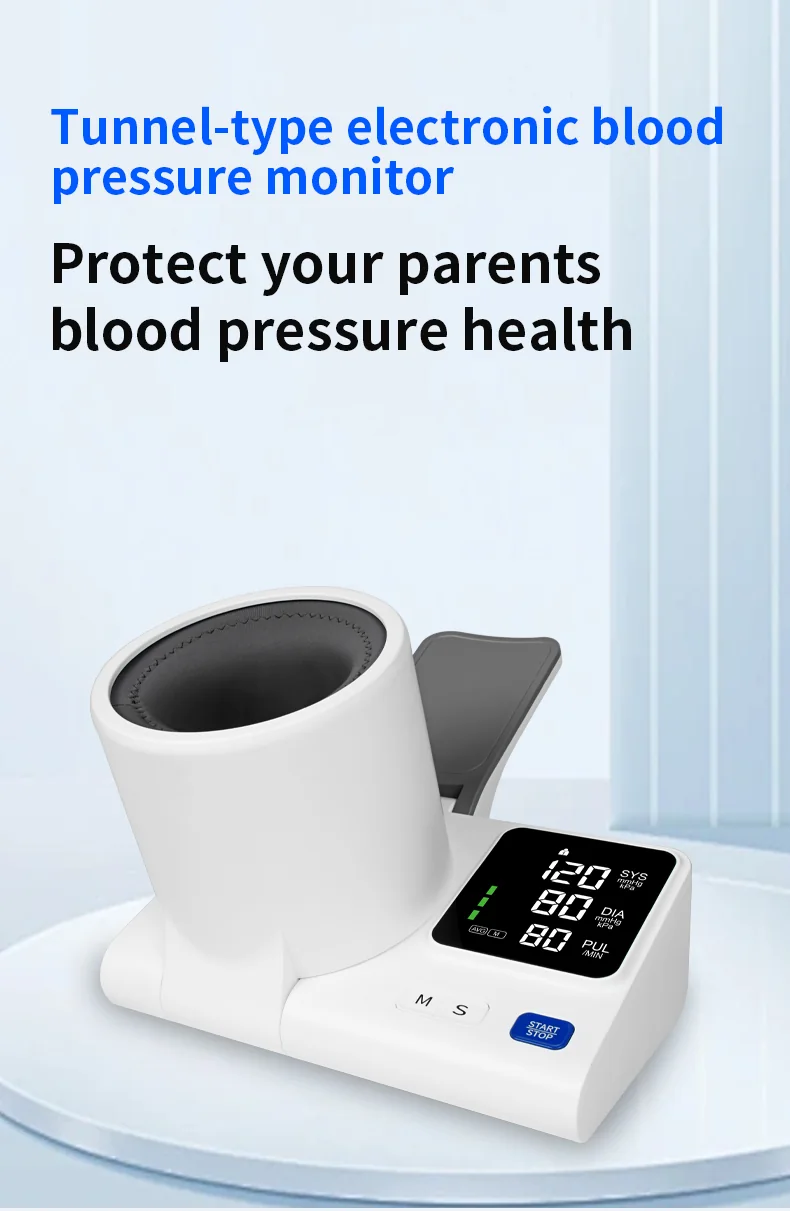

Our Tunnel-Type Blood Pressure Monitor is designed for high-traffic screening environments such as pharmacies, clinics, and health checkpoints. Featuring a sleeve-free, one-hand measurement tunnel design, it eliminates the need for cuff wrapping — making it quick, hygienic, and easy to use. The large LED screen with WHO classification indicator provides clear, glanceable readings.
The Tunnel-Type Blood Pressure Monitor is indicated for professional use in pharmacies, clinics, and community health screening points. The innovative tunnel design allows for one-hand, sleeve-free measurement — no cuff wrapping required, reducing preparation time and user error. The large 100×93 mm LED screen with multi-color display and WHO blood pressure classification indicator ensures clear, immediate interpretation of results. Voice function with mute adjustment supports both audible and silent operation modes. Supports 2 user profiles with 99 readings each. Flexible power supply options: lithium battery, AA batteries, or USB connection. Manufactured in ISO 13485-certified facilities with CE and FDA 510(k) clearances.
Specifications
| Product Specification | |
| Measurement Method | Oscillometric Method |
| Operating Voltage | 6 V DC (4 × AA batteries) |
| Pressure Measuring Range | 0 ~ 295 mmHg (0 ~ 39.235 kPa) |
| Pressure Measurement Tolerance | ±3 mmHg (±0.4 kPa) |
| Pulse Rate Measuring Range | 40 ~ 160 beats/min |
| Service Life | 5 years |
| Operating Environment | Temperature: +5 ℃ ~ +40 ℃ (+41 ℉ ~ 104 ℉); Relative Humidity: 15% RH ~ 90% RH (non-condensing); Atmospheric Pressure: 800 hPa ~ 1050 hPa |
| Storage & Transportation Environment | Temperature: -20 ℃ ~ +60 ℃; Relative Humidity: 10% RH ~ 95% RH; Atmospheric Pressure: 800 hPa ~ 1050 hPa |
| Inter-use Storage & Transportation Environment | +5 ℃ ~ +45 ℃, ≤90% RH (no condensation) |
Applications
Product Advantages

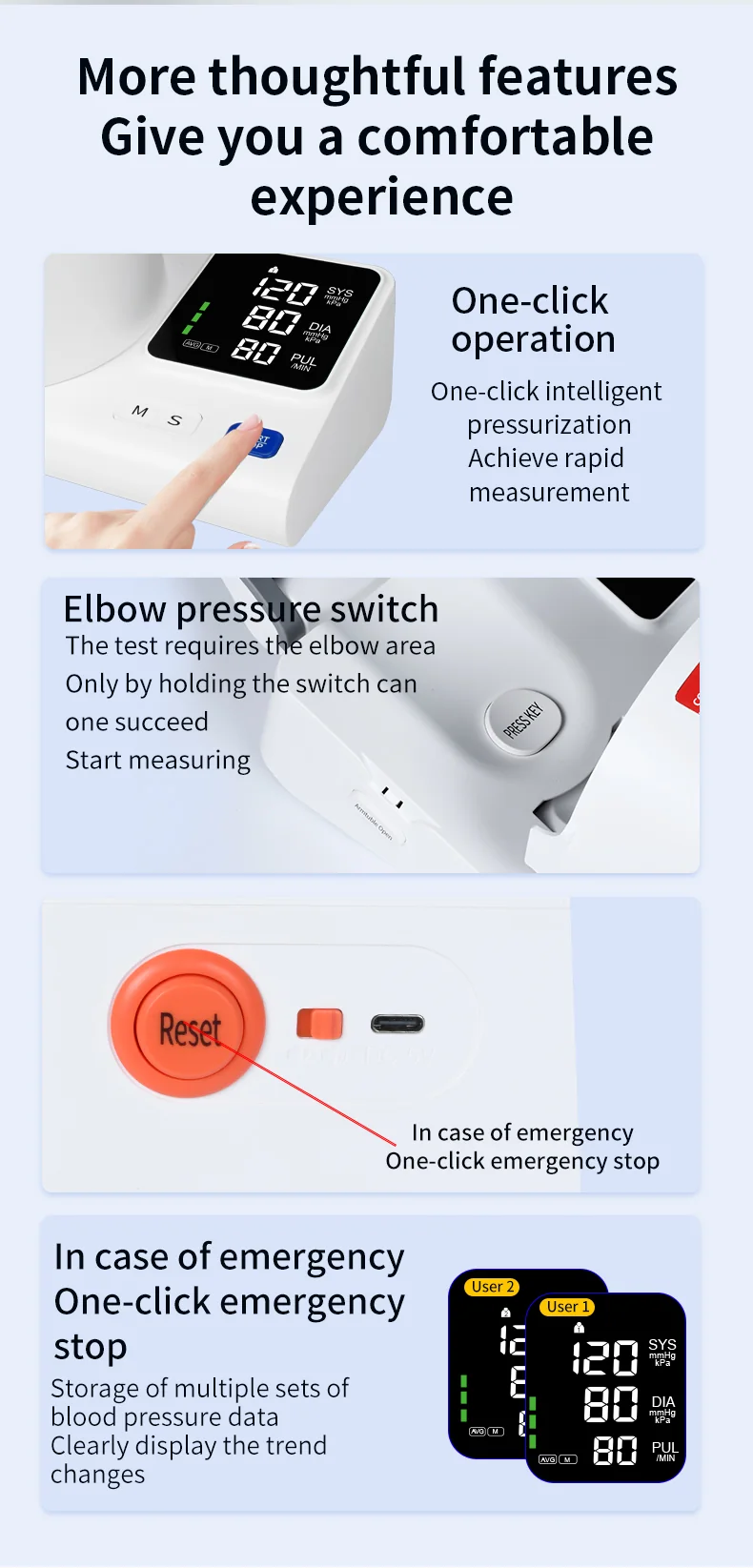

Built-in Elbow Pressure Switch for Posture Correction

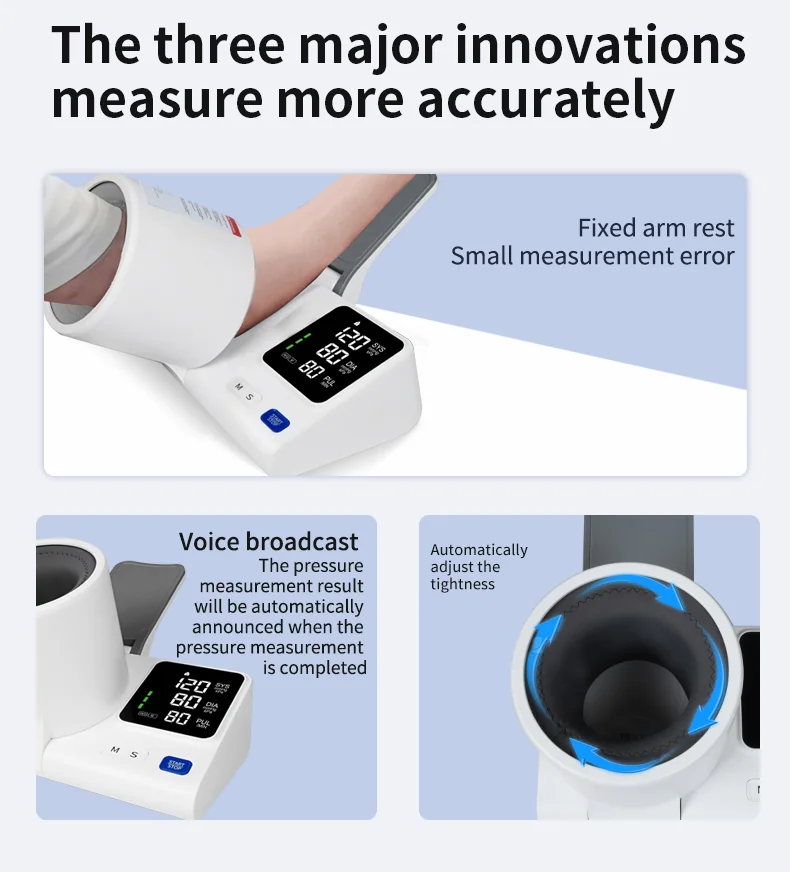

Tunnel design: sleeve-free, one-hand operation.

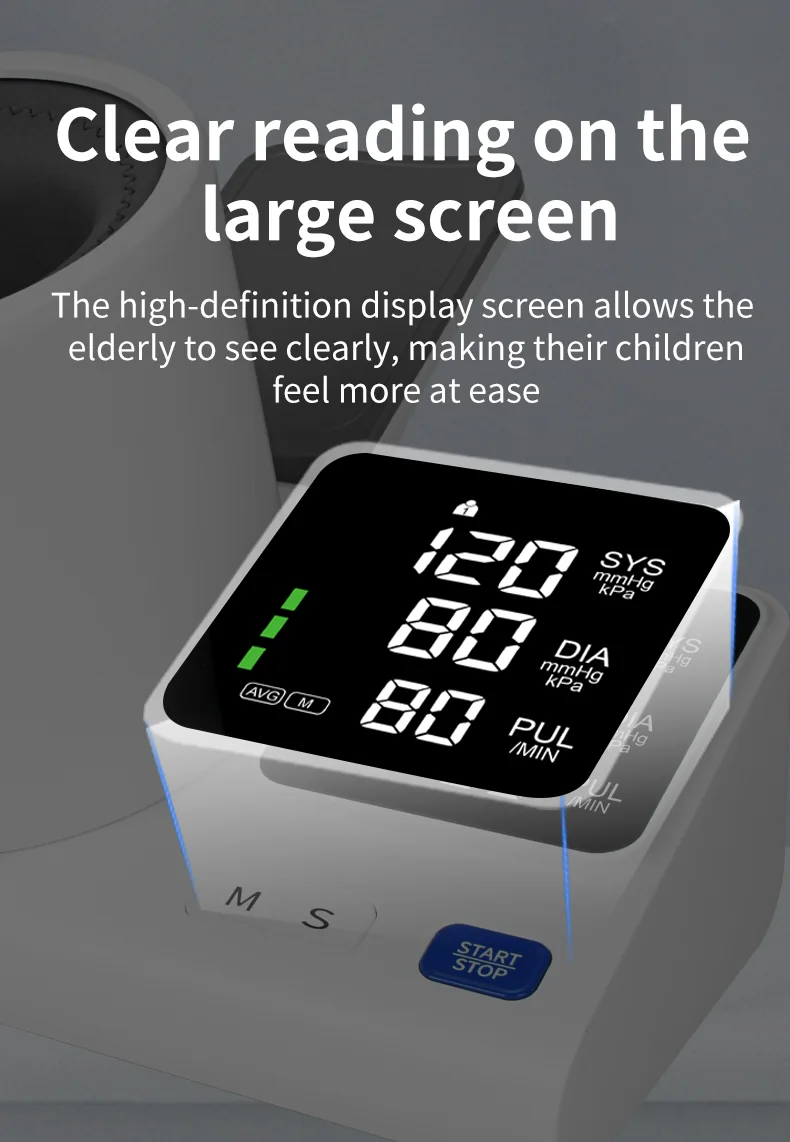

Large 100×93 mm LED screen with WHO classification indicator.

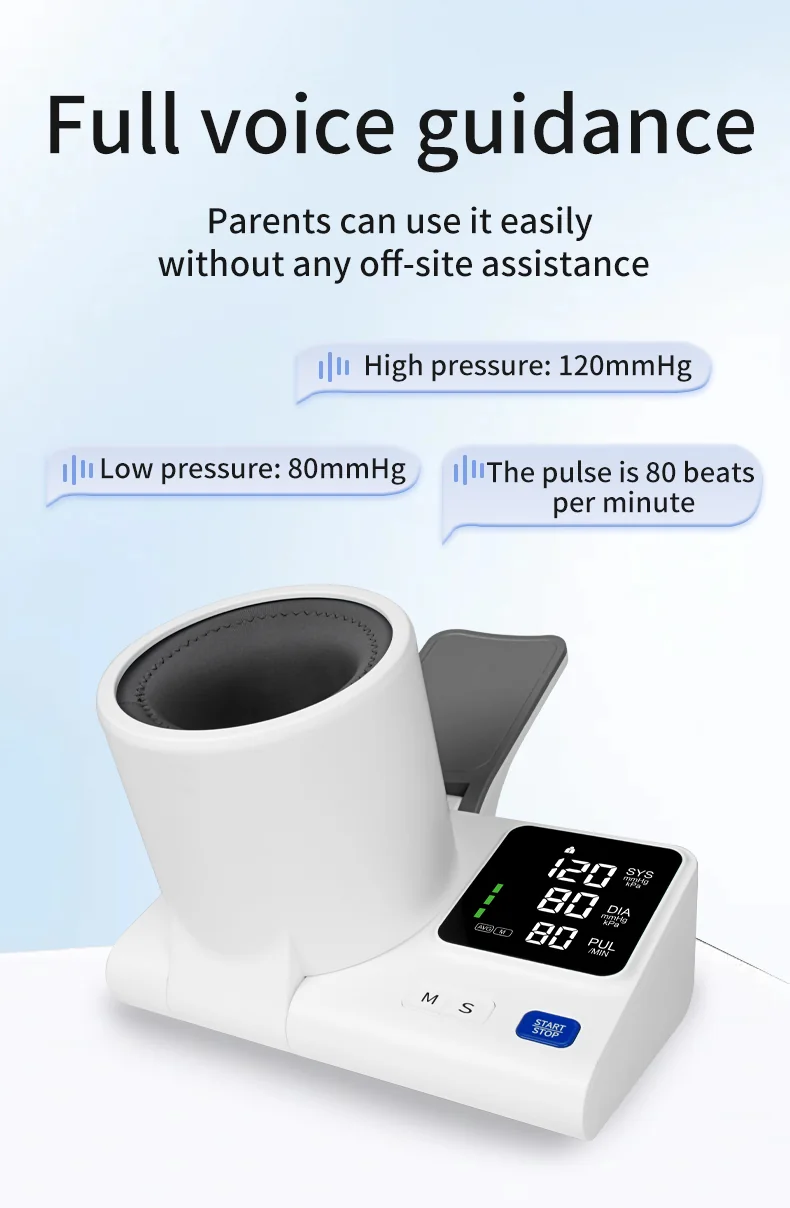

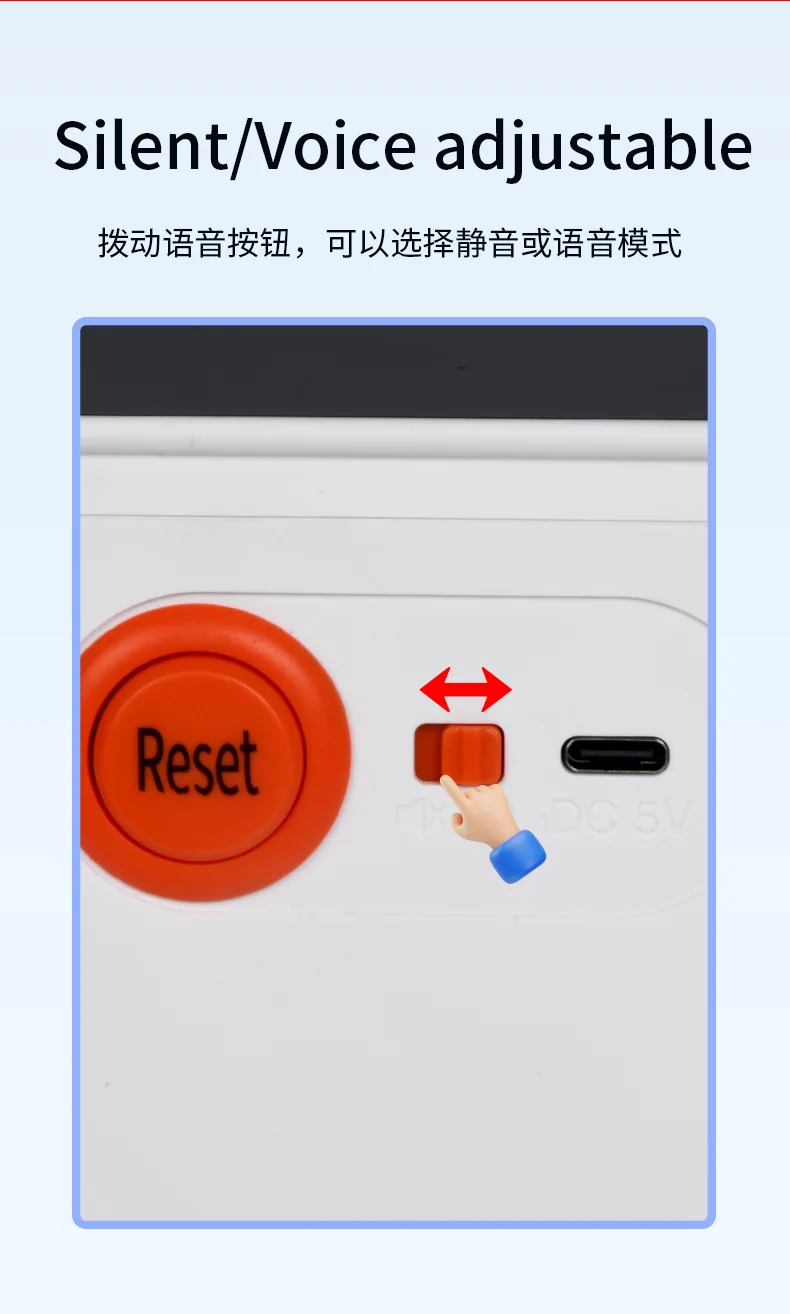

Voice function with mute adjustment.
2 user profiles × 99 readings memory.

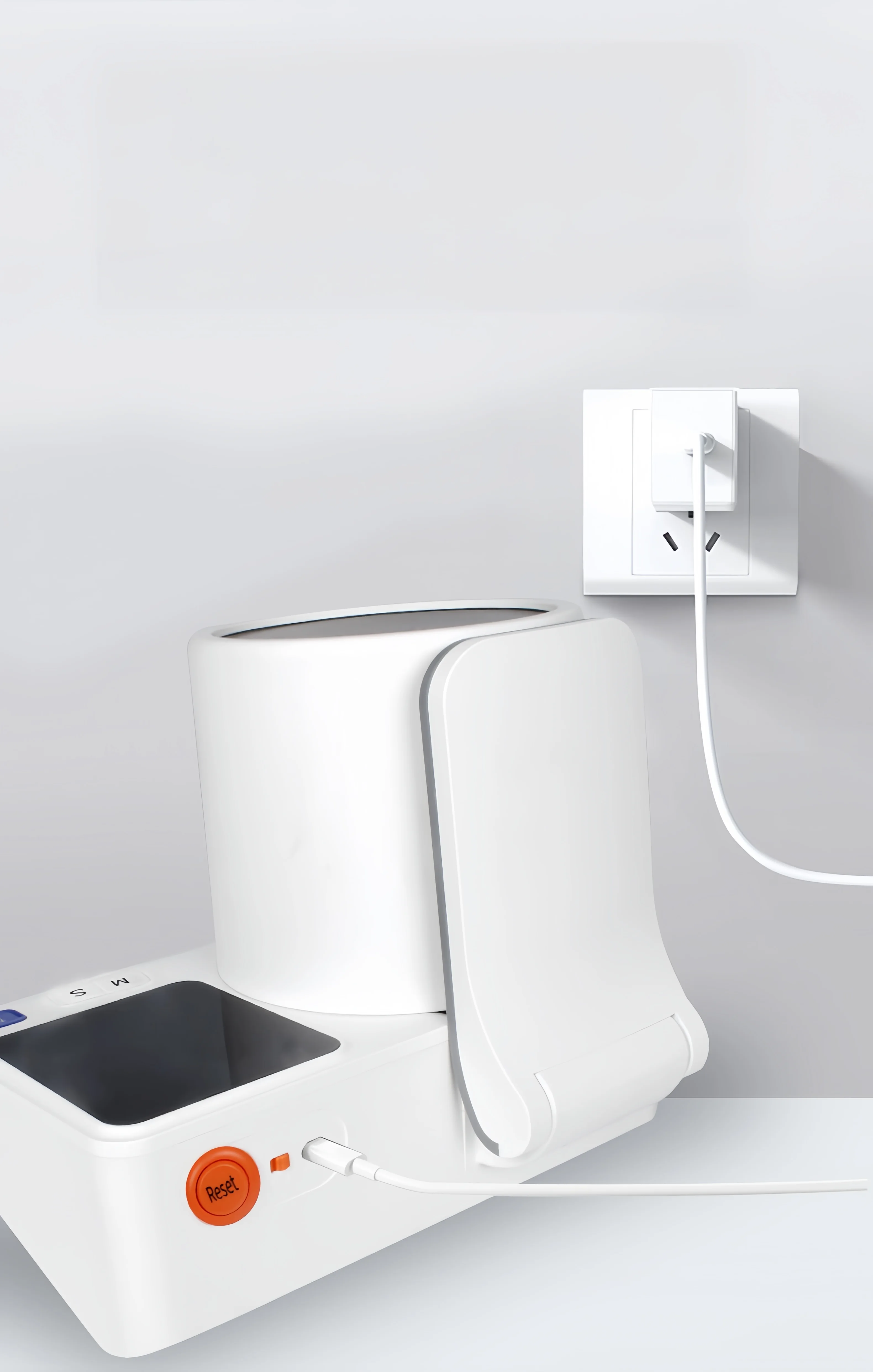

Flexible power: lithium battery / AA / USB.
Use Method

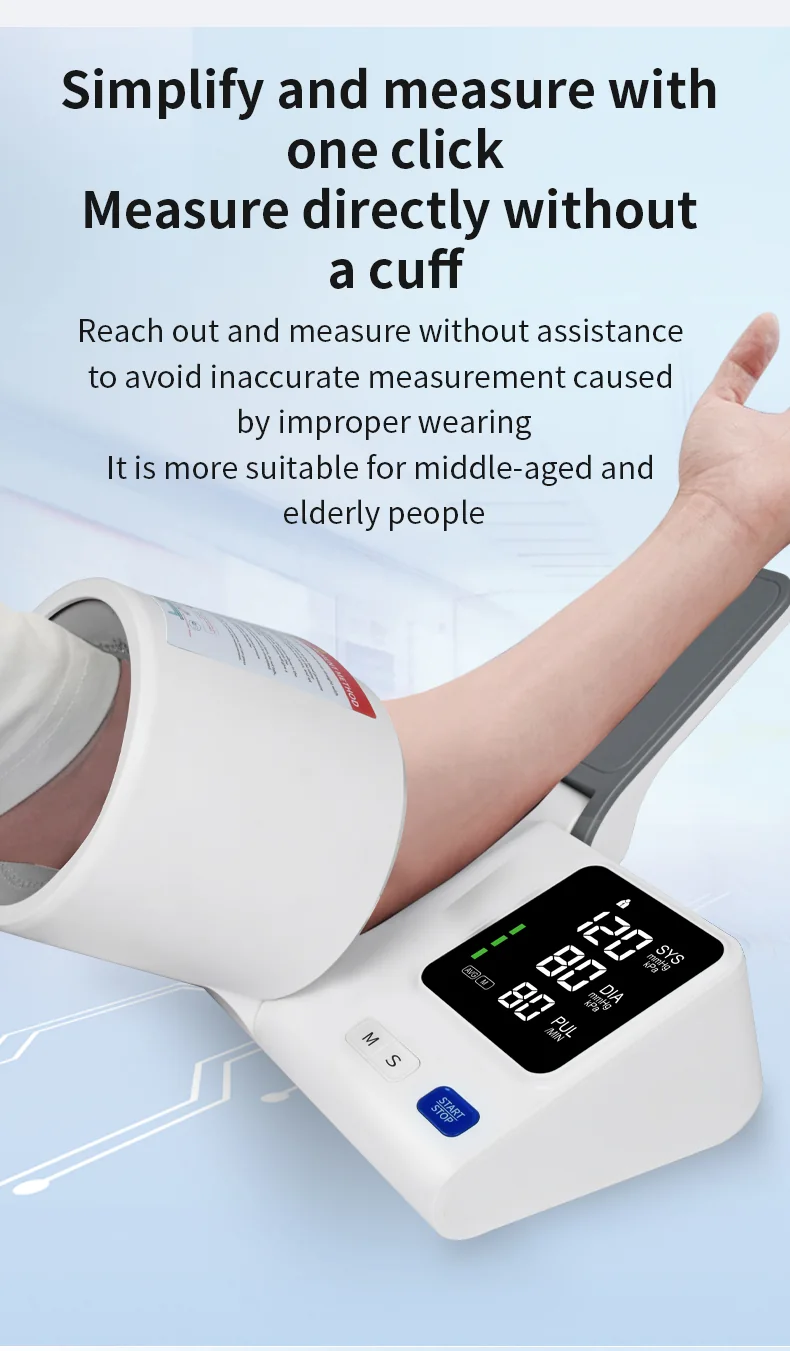

Insert your arm into the tunnel opening. No cuff wrapping is needed.
Rest your arm comfortably with the palm facing up.
Press the START button. The monitor will automatically inflate and measure.
Results are displayed on the large LED screen with WHO classification indicator.
Readings are automatically stored in the selected user profile.

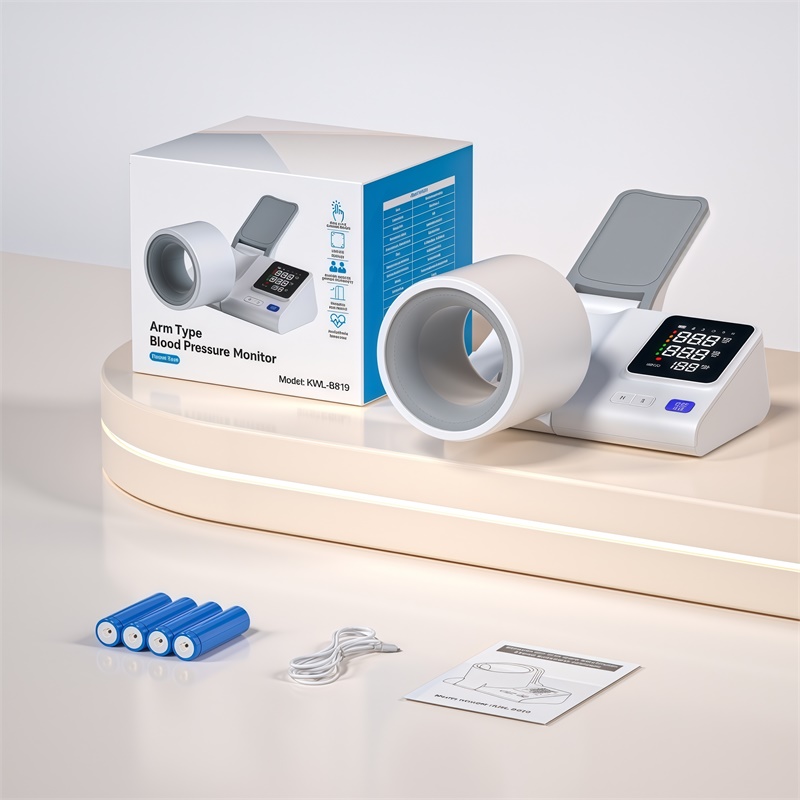

Packaging Specifications
| Product Net Weight | 1268g (without batteries) |
| Product Size(cm) | 25.8X21.5X20 |
| Color Box Size (cm) | 26.5×21×22 |
| Gross Weight (Color Box Included) | 1.72kg |
| Carton Size (cm) | 55*44*44.5 |
| Carton Gross Weight | 17kg |
| Pack Qty | 8pcs/ctn |
Product Video
Product Details
