Product Introduction

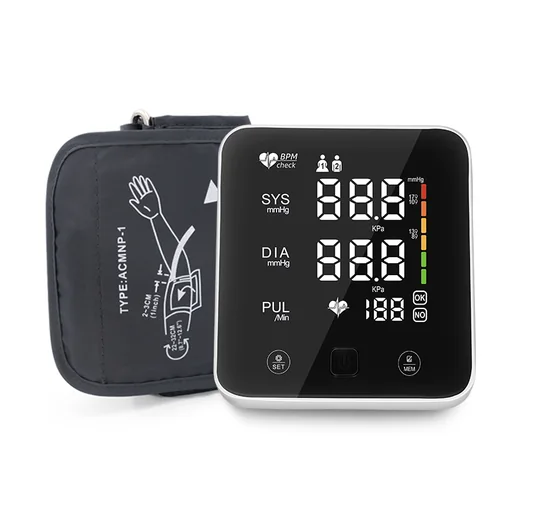

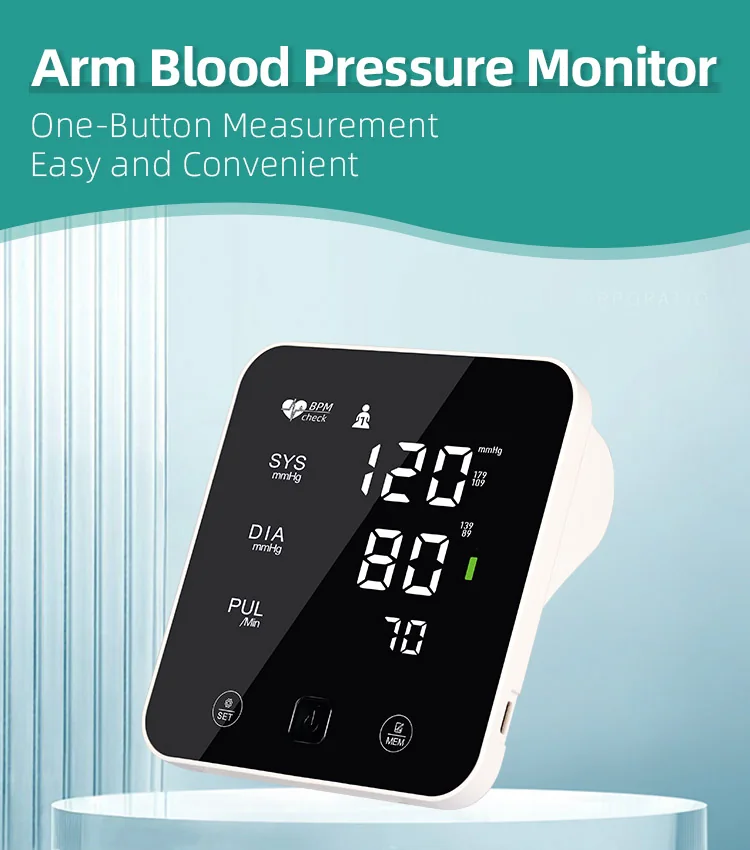

Our Upper-Arm Electronic Blood Pressure Monitor is designed for reliable home and clinical use. Featuring a full-step English voice guidance function, it assists users through the measurement process — making it particularly suitable for elderly users and those who prefer audible instructions. The large 116×110 mm LED display with WHO blood pressure level indicator provides clear, easy-to-read results.
The Upper-Arm Electronic Blood Pressure Monitor is indicated for home and clinical blood pressure monitoring. Full-step English voice guidance assists users through the measurement process, making it ideal for elderly users or those who prefer audible instructions. The large 116×110 mm LED display with WHO blood pressure level indicator provides clear, color-coded interpretation of results. Irregular heartbeat detection alerts users to potential cardiac rhythm abnormalities. Supports 2 user profiles with 99 readings each, with one-touch recall for easy tracking. The comfortable large cuff (22–42 cm) fits a wide range of arm sizes. Manufactured in ISO 13485-certified facilities with CE MDR and FDA 510(k) clearances.
Specifications
| Product Specifications | |
| Auto power-off | 60s without operation |
| Display range | 0-290mmHg (0-39kPa) |
| Measurement range | Diastolic: 30-200mmHg, Systolic: 60-255mmHg, Pulse: 40-199 pulses/min |
| Measurement accuracy | Pressure: ±3mmHg (±0.4kPa), Pulse: ±5% of reading |
| Operating Conditions | Temperature: 5°C ~ 40°C; Relative Humidity: 15%–80% RH; Atmospheric Pressure: 70–106 kPa |
| Storage & Transportation | Temperature: -20°C ~ +55°C; Relative Humidity: 15%–93% RH; Atmospheric Pressure: 70–106 kPa |
| Service Life | 5 years or 10,000 measurements under normal operating conditions |
Applications

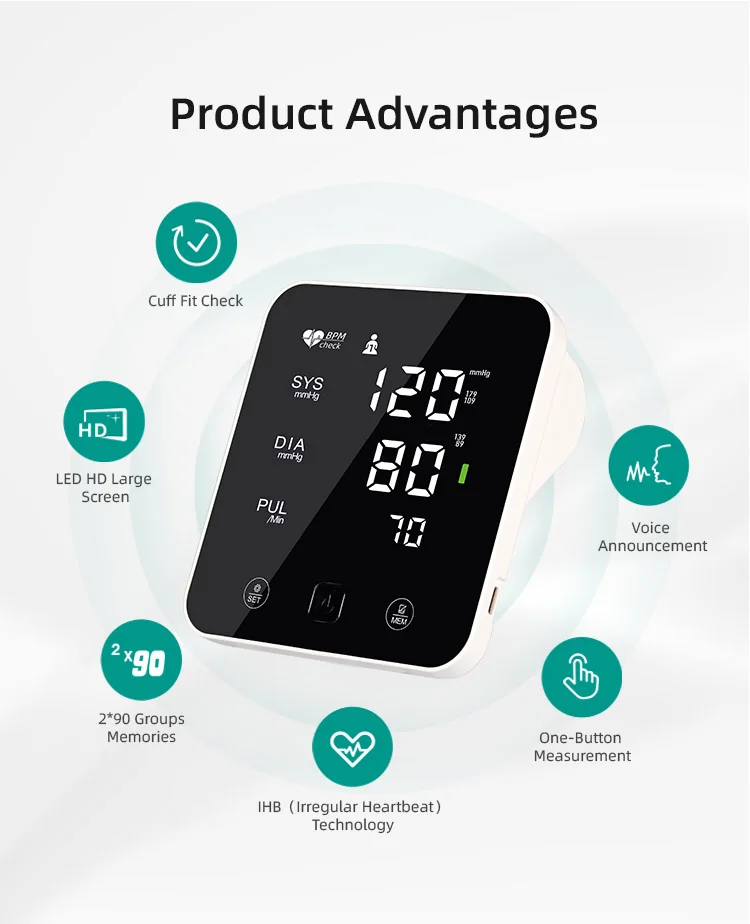

Product Advantages

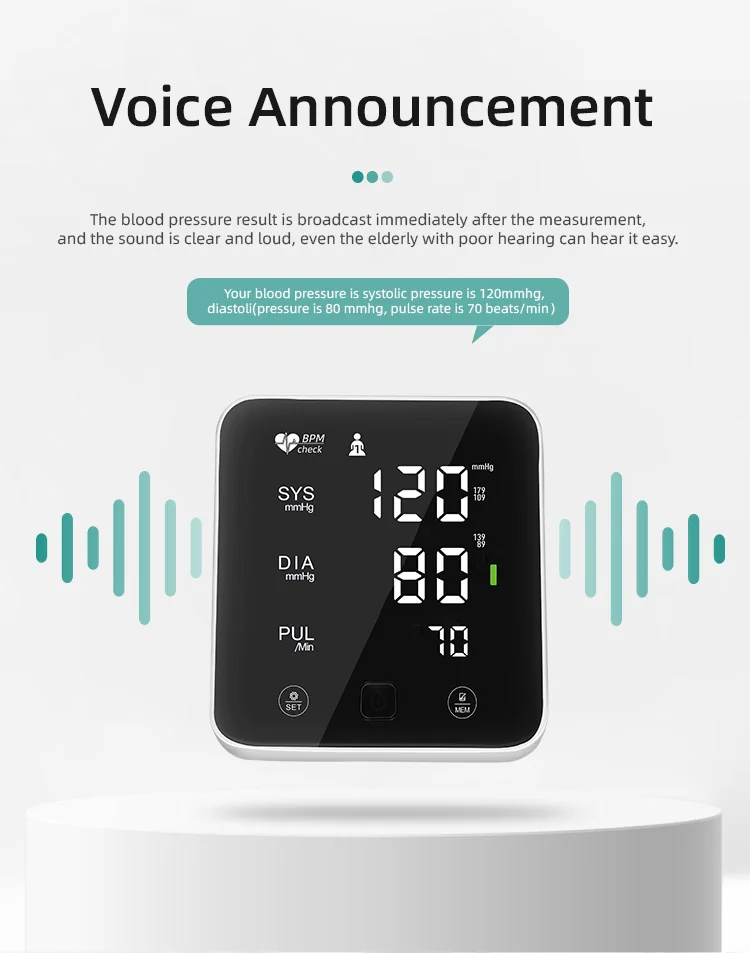

Full-step English voice guidance for easy use.

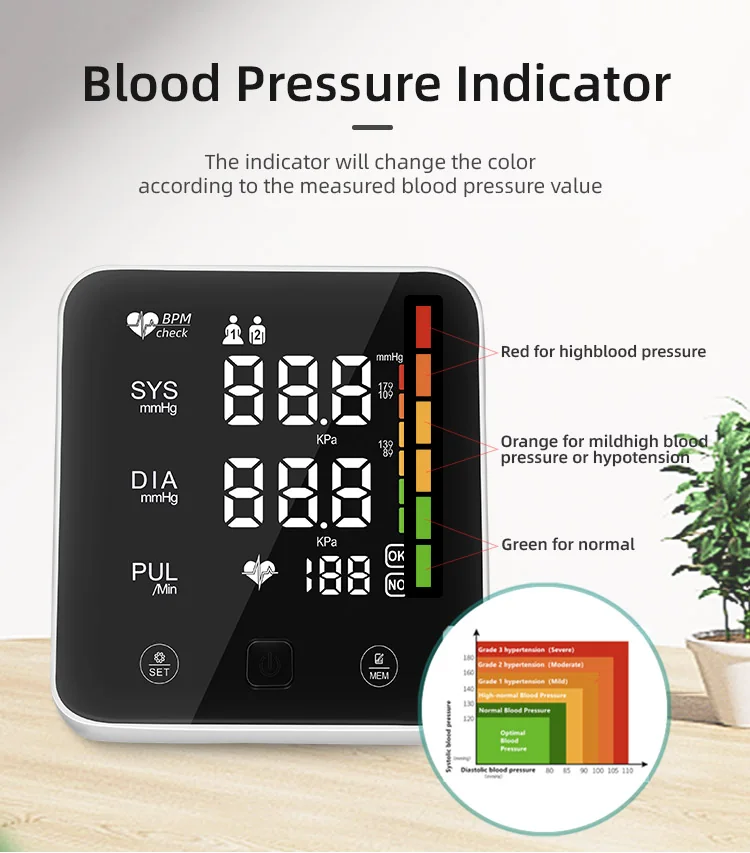

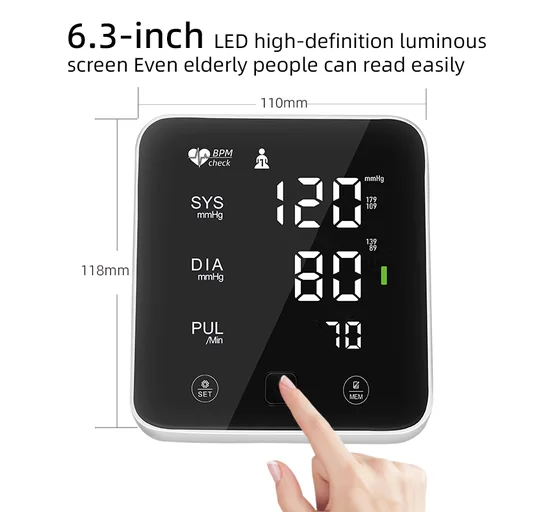

Large 116×110 mm LED display with WHO indicator.
2 user profiles × 99 readings memory.

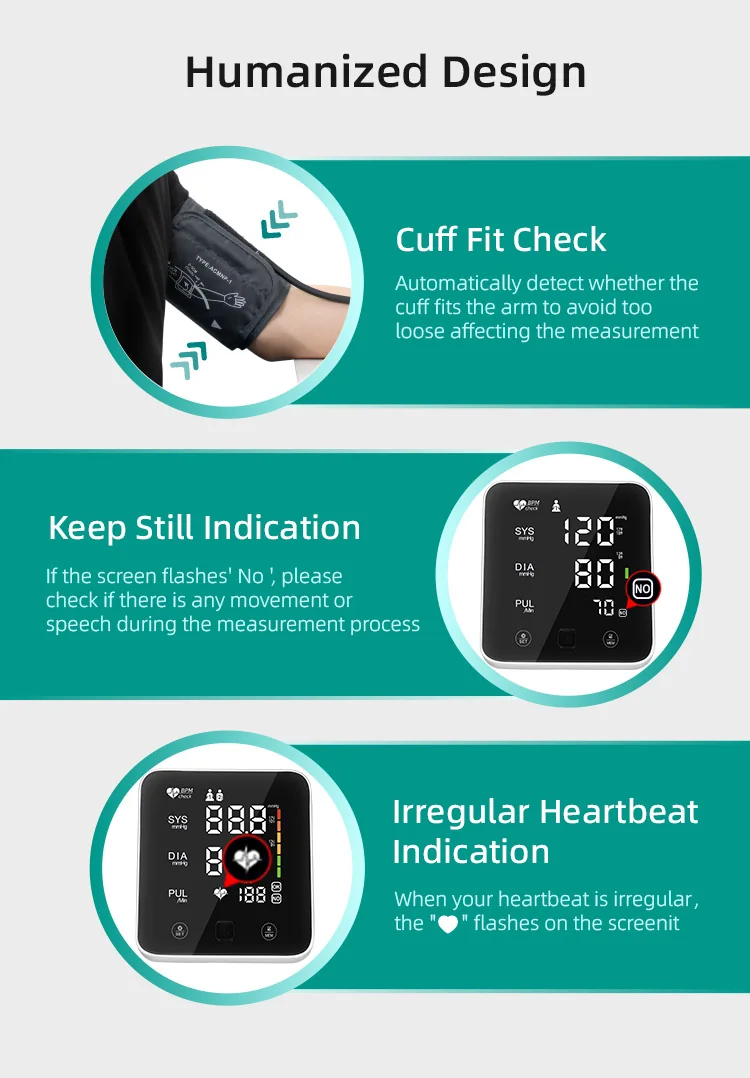

Irregular heartbeat detection.
Comfortable large cuff (22–42 cm).
Dual power: AAA batteries or Type-C.

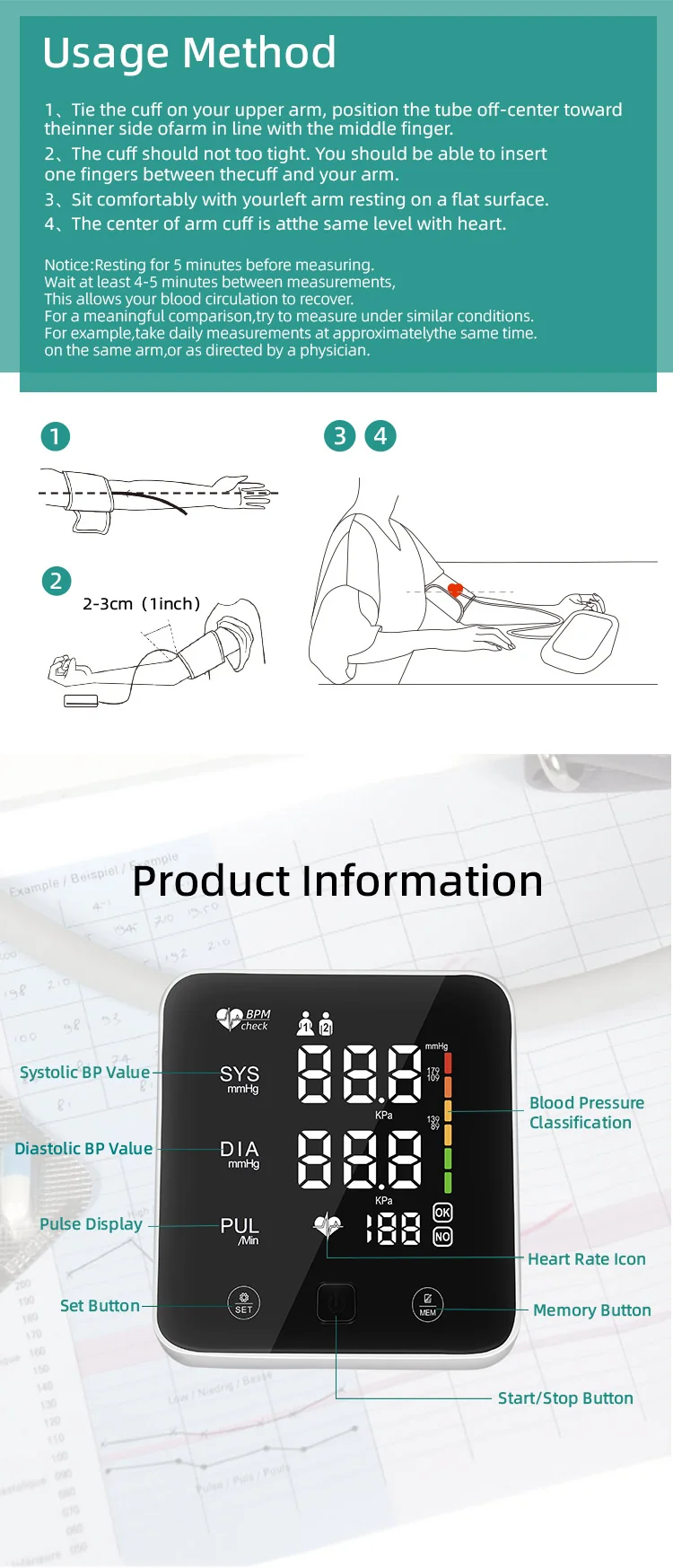

Use Method
Rest for 5 minutes before measurement. Sit in a comfortable position with feet flat on the floor.
Place the cuff on your bare upper arm, about 2-3 cm above the elbow. The cuff should be snug but not too tight.
Rest your arm on a table so the cuff is at the same level as your heart.
Press the START button. Voice guidance will lead you through the process.
Results are displayed on the large LED screen with WHO classification indicator.
Readings are automatically stored with date and time stamp.
Packaging Specifications
| Product Net Weight | 320g(without batteries) |
| Color Box Size (cm) | 13*10.5*16 |
| Gross Weight (Color Box Included) | 400g |
| Carton Size (cm) | 50*37.5*33.5 |
| Carton Gross Weight | 13kg |
| Pack Qty | 30 PCS / CTN |
Product Video

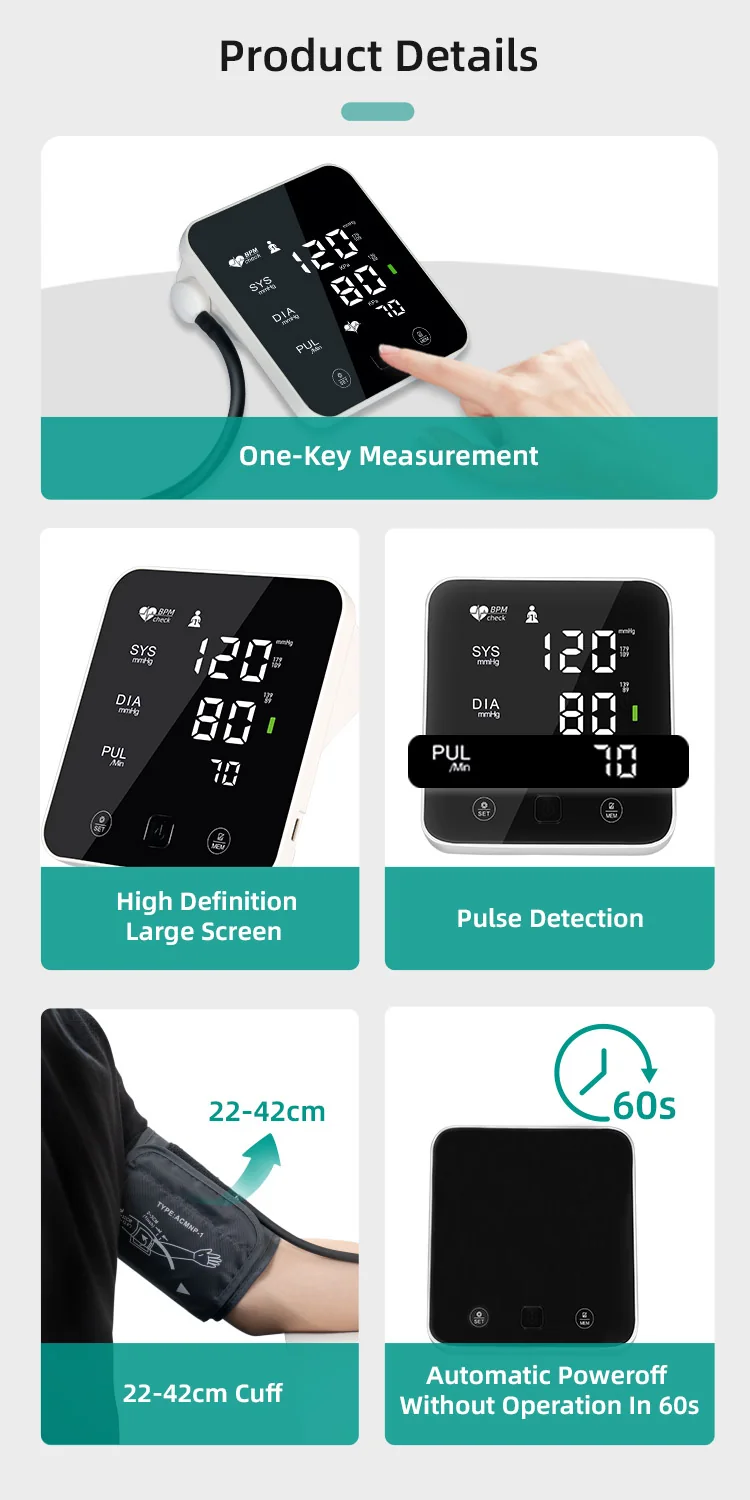

Product Details
