Product Introduction
Our Upper-Arm Electronic Blood Pressure Monitor features a large 60×67 mm LCD display with extra-large digits — making it ideal for elderly users and those who prefer clear visual clarity over voice guidance. The compact, portable design with comfortable cuff options ensures reliable home monitoring for daily use.
The Upper-Arm Electronic Blood Pressure Monitor is indicated for home and clinical blood pressure monitoring. The large 60×67mm LCD display with extra-large digits ensures clear, easy-to-read results — ideal for elderly users and those who prefer visual clarity over voice guidance. WHO blood pressure classification indicator provides immediate interpretation of results. Supports 2 user profiles with 199 readings each for comprehensive tracking. The comfortable cuff fits arm circumferences of 22–34 cm (22–42 cm optional). Compact and portable design (129×96×46 mm) makes it convenient for daily use and travel. Manufactured in ISO 13485-certified facilities with CE MDR, FDA 510(k), ROHS, and BSCI certifications.
Specifications
| Product Specifications | |
| Measuring Principle | Oscillometric method |
| Measuring Range | Pressure: 0–299 mmHg; Pulse: 40–199 pulses/min |
| Accuracy | Pressure: ±3 mmHg; Pulse: ±5% of reading |

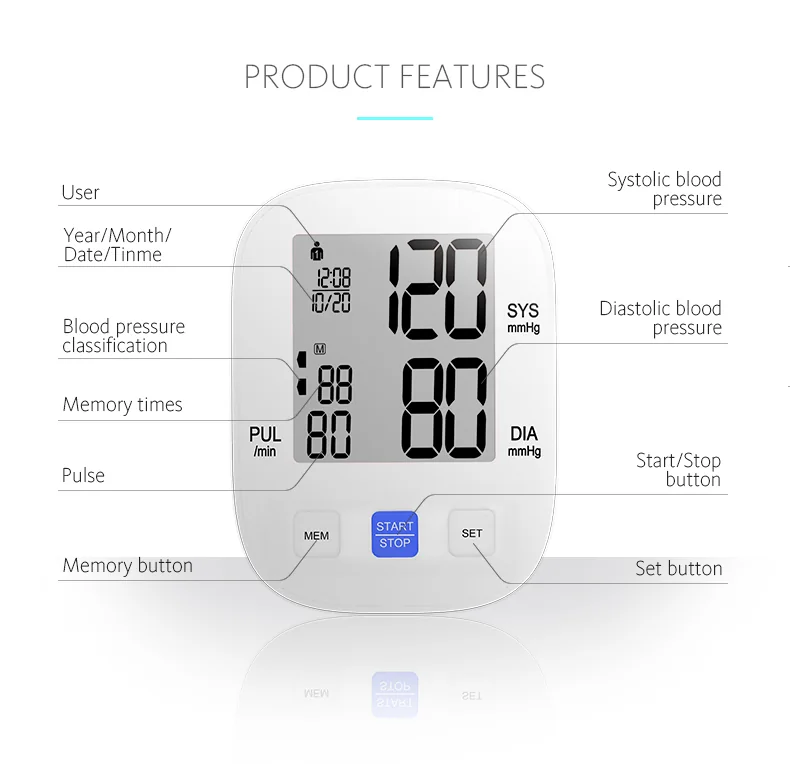

| LCD Indication | Pressure: 3 digits (mmHg); Pulse: 3 digits; Symbols: Memory / Heartbeat / Low battery |
| Automatic Power Off | In 3 minutes |
| Main Unit Lifetime | 10,000 times under normal use |
| Battery Life | About 300 times under normal conditions |
| Operating Environment | Temperature: 5–40°C; Humidity: 15%–93% RH; Atmospheric pressure: 86–106 kPa |
| Storage & Transportation Environment | Temperature: -20°C – 55°C; Humidity: 10%–93% RH; Atmospheric pressure: 86–106 kPa. Avoid crash, sun burn or rain during transportation. |
| Expected Service Life | 5 years |
Applications
Product Advantages
Large 60×67 mm LCD with extra-large digits — easy to read.
2 user profiles × 199 readings memory.
WHO blood pressure classification indicator.
Compact and portable design.

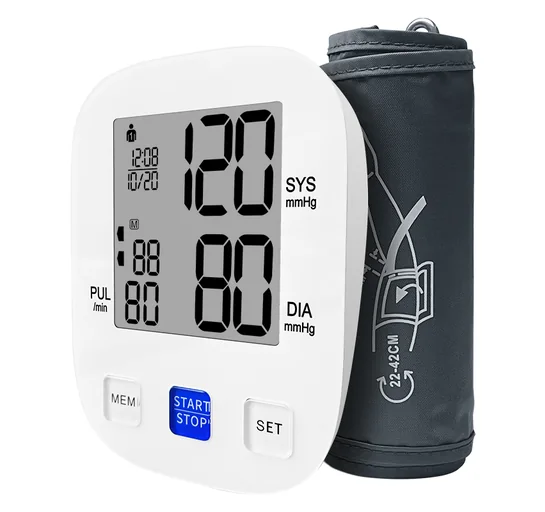

Comfortable cuff (22–34 cm / 22–42 cm optional).
Voice and backlight options available.
ROHS and BSCI certified.
Average value calculation of last 3 measurements
Low-battery & heartbeat indicator
Use Method
Rest for 5 minutes before measurement. Sit in a comfortable position with feet flat on the floor.

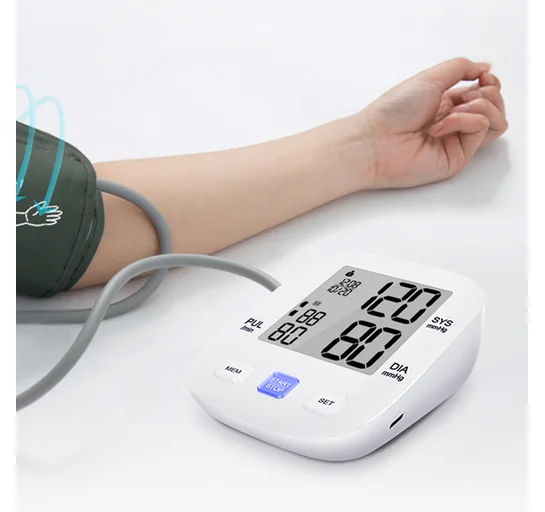

Place the cuff on your bare upper arm, about 2-3 cm above the elbow. The cuff should be snug but not too tight.
Rest your arm on a table so the cuff is at the same level as your heart.

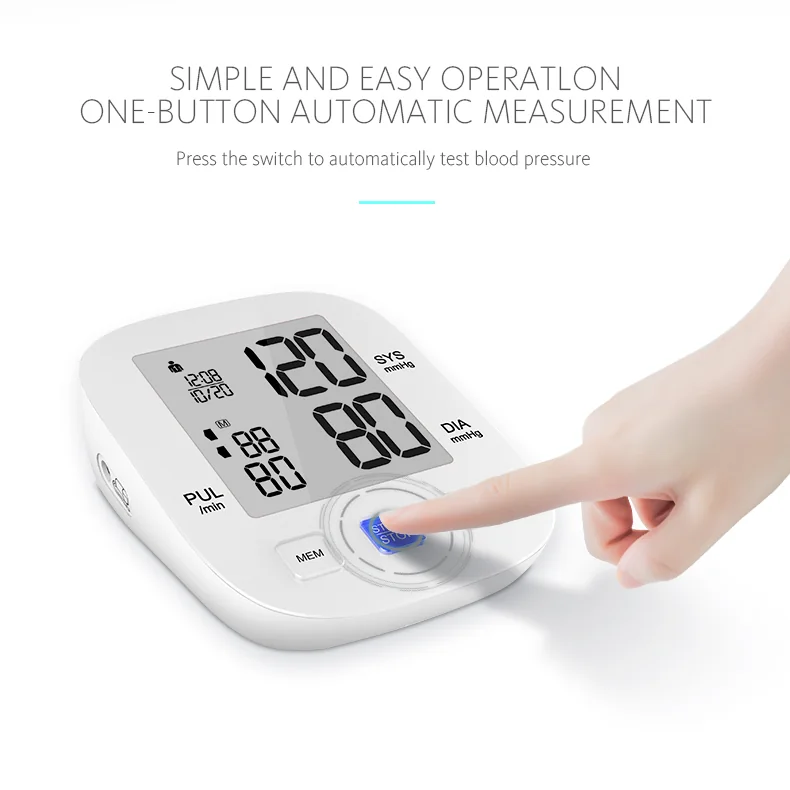

Press the START button.
Results are displayed on the large LCD screen with WHO classification indicator.
Readings are automatically stored with date and time stamp.

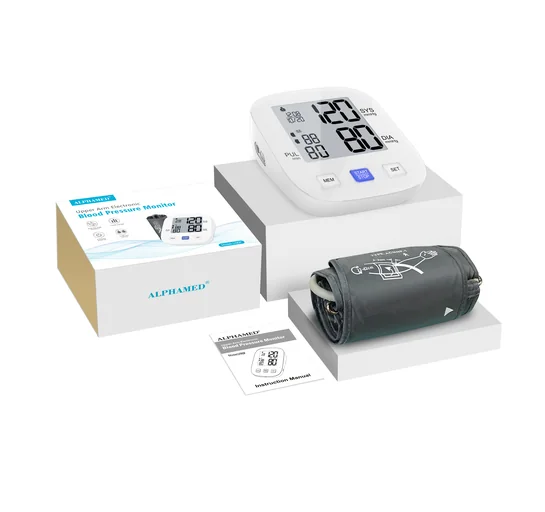

Packaging Specifications
| Product Carton Specifications | |
| Product Net Weight | 211g |
| Color Box Size (cm) | 16.2*11.6*8.5 |
| Gross Weight (with color box) | 400g |
| Carton Size (cm) | 46*25.5*34.5 |
| Carton Gross Weight | 8-8.5kg (batteries not included) |
| Pack Qty | 20 PCS / CTN |
Product Video

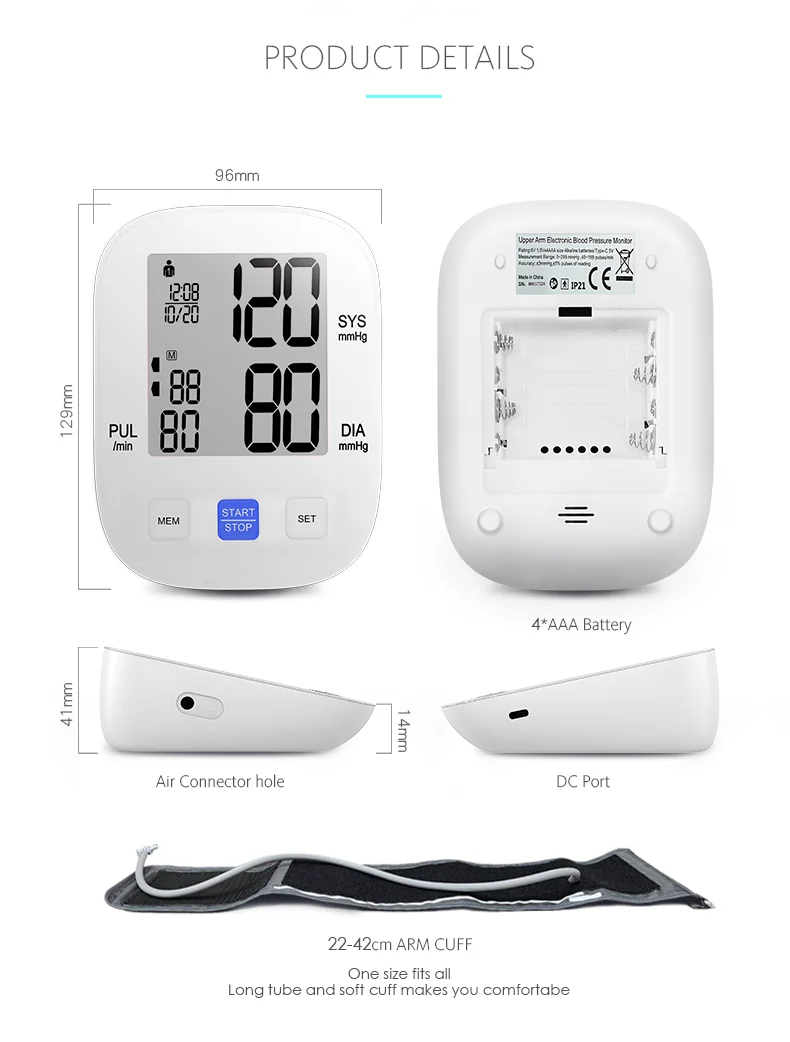

Product Details
