Product Introduction
Our Mesh Nebulizer features advanced microporous atomization technology for quiet, efficient respiratory therapy. With a sleek, ultralightweight design and flexible power options (Type-C/dry battery or lithium battery), it offers convenient use at home or on the go. The stylish white finish and 3 adjustable airflow levels provide a premium, customizable treatment experience.
The Mesh Nebulizer is indicated for the treatment of respiratory conditions including asthma, bronchitis, COPD, and other upper and lower respiratory tract infections. Advanced microporous atomization technology delivers fine mist particles (MMAD < 5.0 μm) for effective medication deposition in the lower respiratory tract. Three power options are available: plug-in, dry battery, or built-in rechargeable lithium battery, offering flexibility for home and travel use. 3 adjustable airflow levels allow customized treatment for different patient needs and medication types. The self-cleaning function ensures easy maintenance and consistent device performance. The sleek ultralightweight design (90-95 g) with a stylish white finish makes it ideal for modern, health-conscious users.
Specifications
| Product Specification | |
| Model | ANK-A58 |
| Applied Part | Mouthpiece or Mask |
| Safety Classification | Class BF, Internally Powered Equipment |
| Power Consumption | Approx. 2.0 W |
| Vibration Frequency | Approx. 110 kHz ± 10 kHz |
| Nebulization Rate | ≥ 0.2 mL/min |
| Liquid Temperature | ≤ 40°C |
| Sound Level | ≤ 50 dB (at 1.0 m distance) |

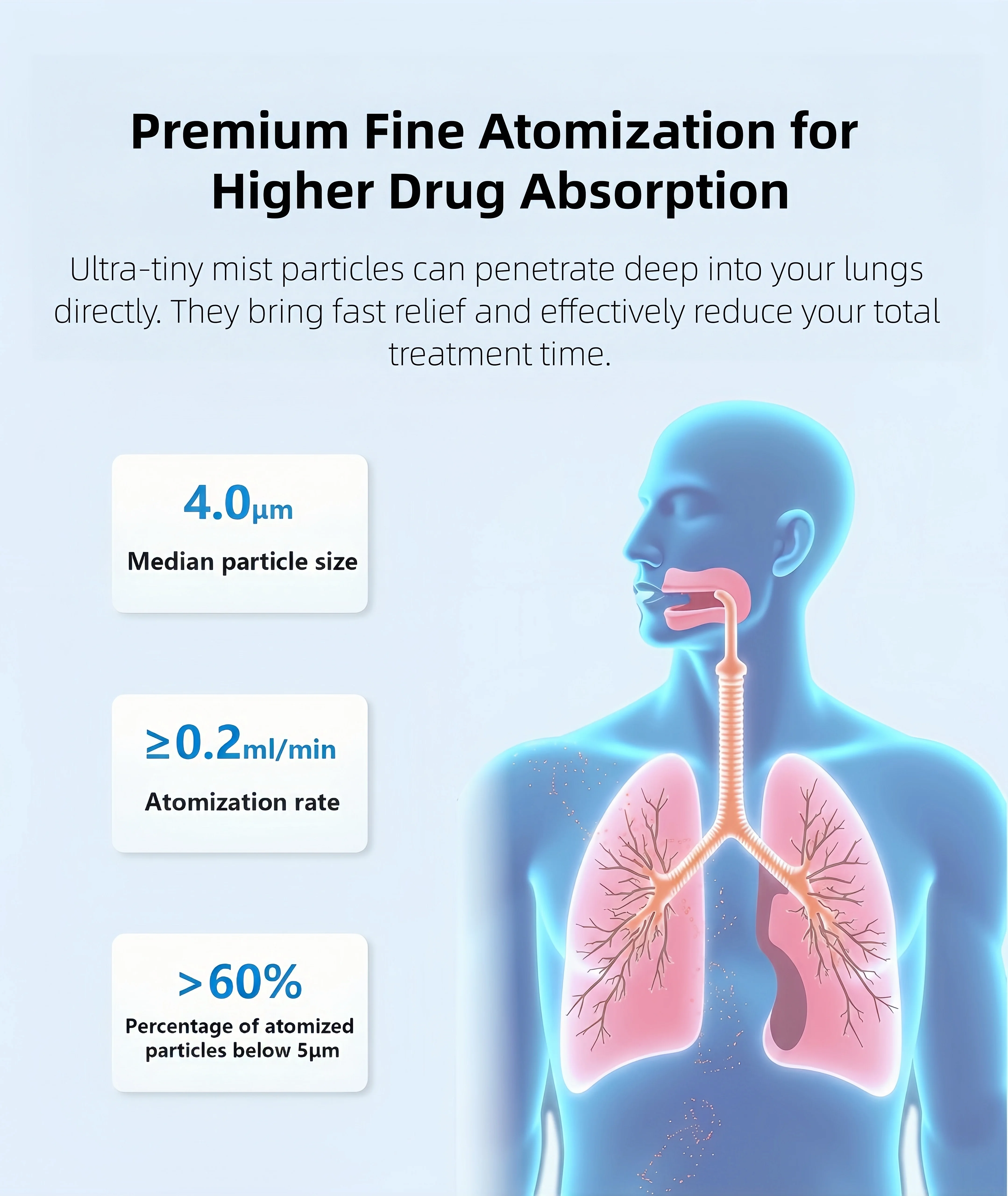

| Particle Size | MMAD < 5.0 μm |
| Medication Cup Capacity | Max 10 mL; Min 0.5 mL |
| Ingress Protection | IP21 |
| Warranty Period | 1-year warranty for main unit (medicine cup excluded) |
| Operating Environment | Temperature 5°C–40°C; Relative Humidity 15%–90% RH (non-condensing); Atmospheric Pressure 86.0–106.0 kPa |
| Storage & Transportation Environment | Temperature -20°C–55°C; Relative Humidity ≤ 80% RH; Atmospheric Pressure 70.00–106.0 kPa |
Applications
Product Advantages
Advanced microporous atomization technology — MMAD < 5.0 μm.

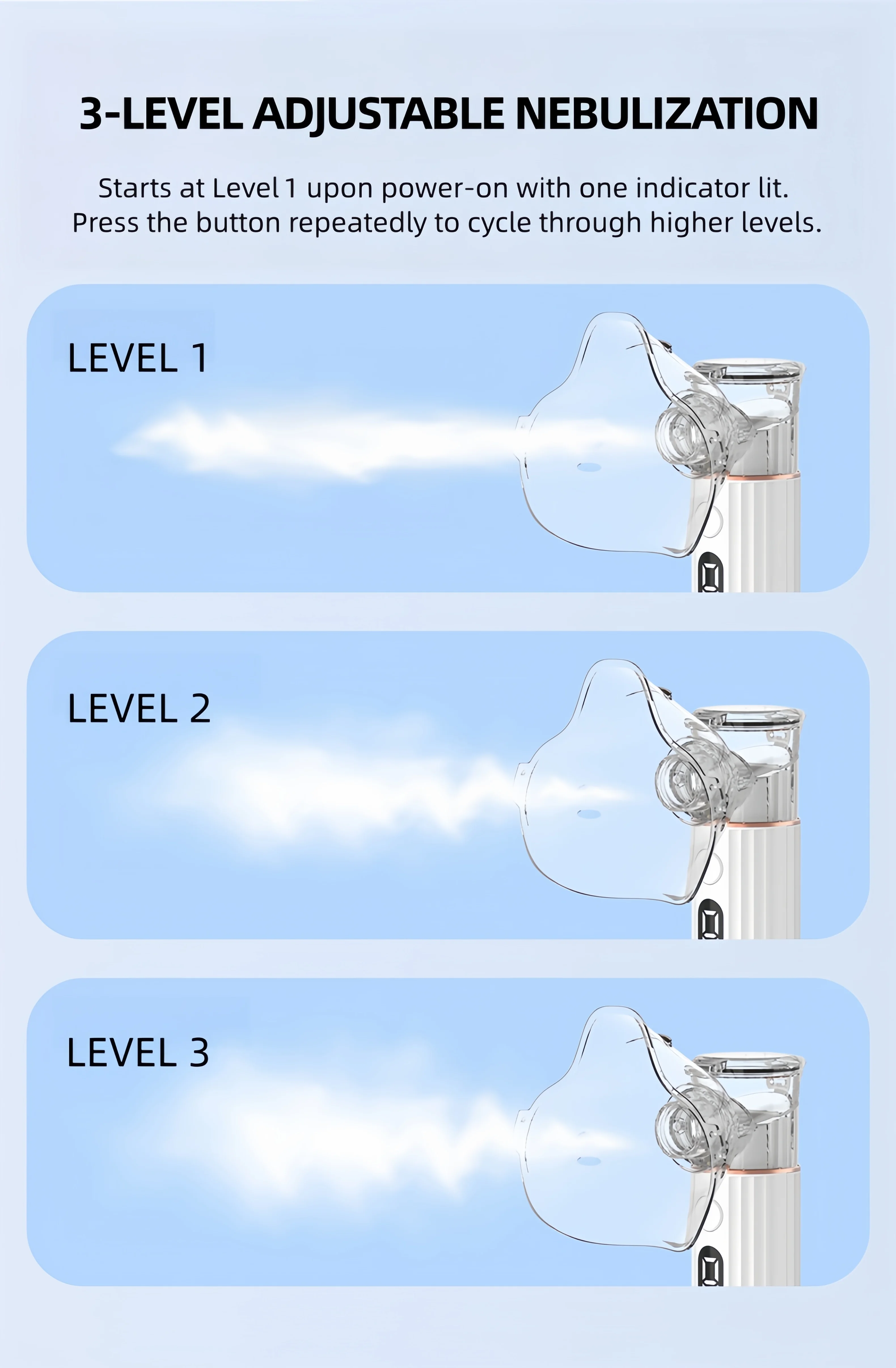

3 adjustable airflow levels for customized treatment.
Self-cleaning function for easy maintenance.
Sleek ultralightweight design (90-95 g) — modern aesthetics.

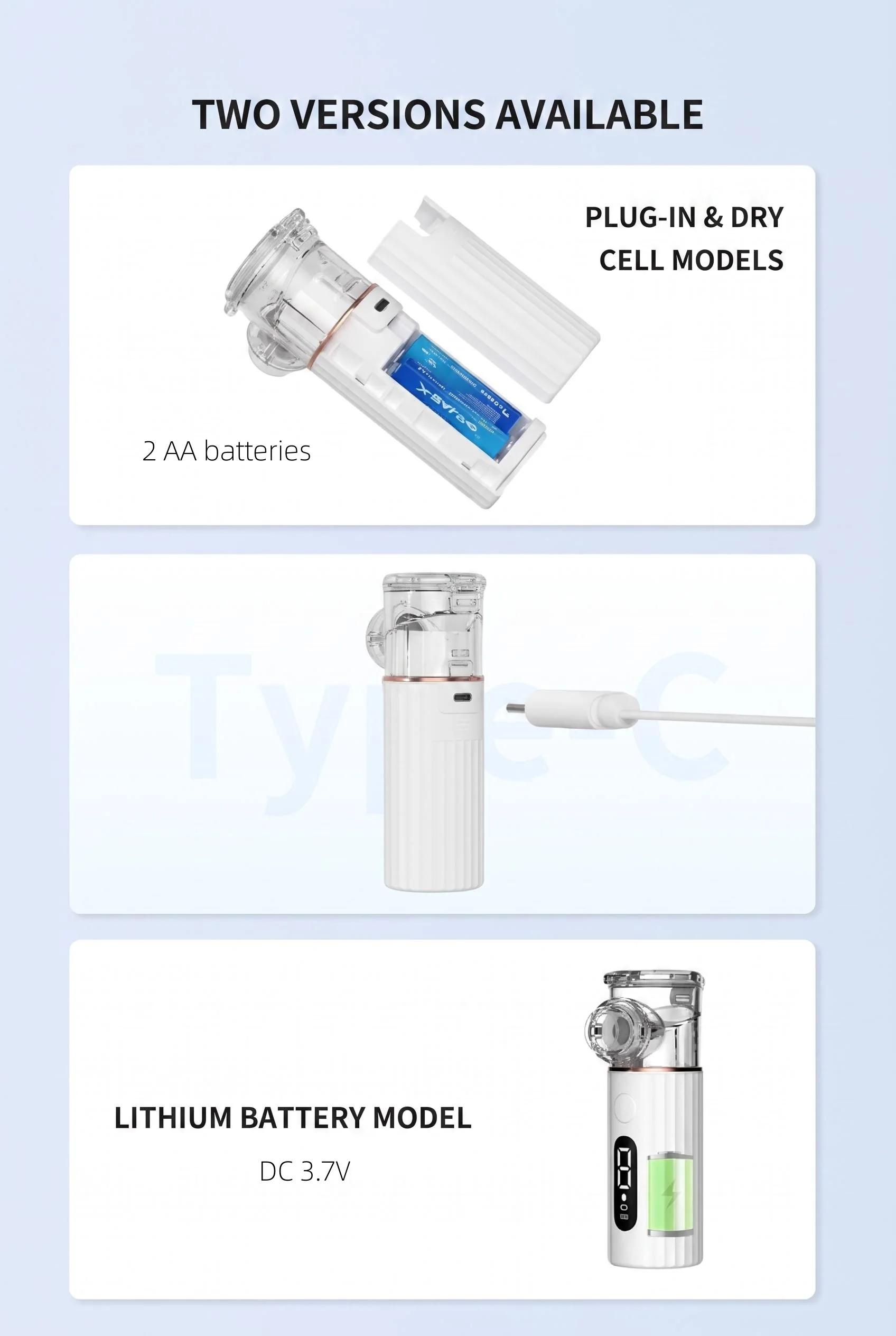

Flexible power: USB / dry battery / built-in Li-ion.
IP21 protection for durability.
Low medication residual for efficient drug use.
Stylish white finish.
Use Method
Ensure the device is clean and assembled correctly.
Open the medication cup and add the prescribed medication (0.5 – 10 mL).
Choose from 3 airflow levels to customize your treatment.
Press the power button to begin treatment.
Sit comfortably and breathe normally through the mouthpiece or mask.
After use, run the self-cleaning mode with clean water or saline to maintain device performance.
Clean the medication cup and mesh plate regularly according to the cleaning instructions.
Packaging Specifications
| Product Carton Specification | |
| Product Size | 62×42×130 mm |
| Net Weight (Device Only) | 90–95 g |
| Color Box Dimensions | 142×134×61 mm |
| Gross Weight (Color Box Included) | 206–211 g |
| Carton Dimensions (L×W×H, cm) | 59.8×55.6×39.6 |
| Carton Gross Weight | 20.2–20.7 kg |
| Pack Qty | 96 pcs/ctn |
