Product Introduction
Our Mesh Nebulizer features advanced microporous atomization technology for quiet, efficient respiratory therapy. With a sleek, ultra-lightweight design and flexible power options (Type-C/dry battery or lithium battery), it offers convenient use at home or on the go. Available in multiple colors, it combines functionality with modern aesthetics.

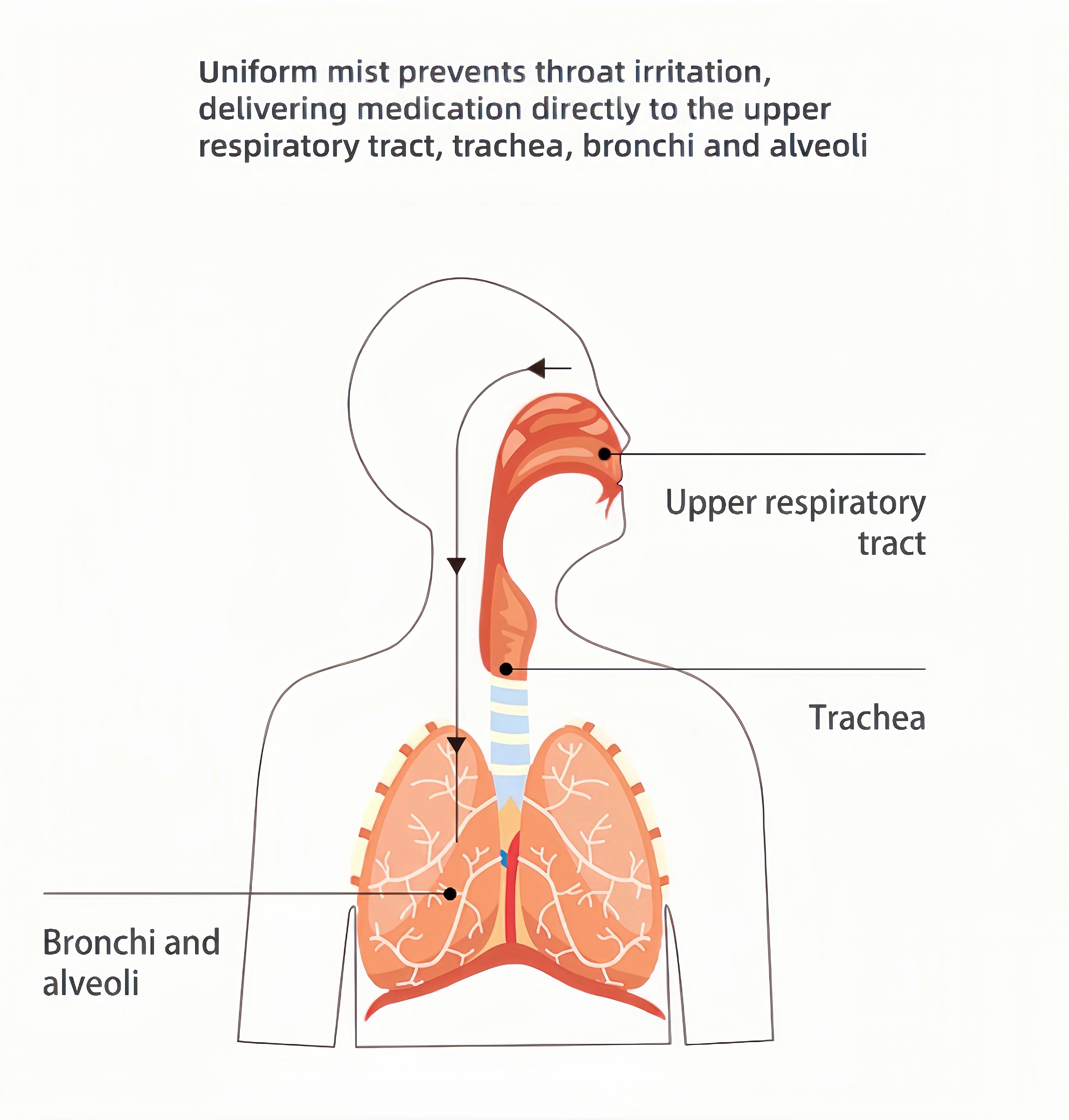

The Mesh Nebulizer is indicated for the treatment of respiratory conditions including asthma, bronchitis, COPD, and other upper and lower respiratory tract infections. Advanced microporous atomization technology delivers fine mist particles (approx. 4.0 μm, proportion ≥ 60%) for effective medication deposition in the lower respiratory tract. Three power options are available: plug-in, dry battery, or built-in rechargeable lithium battery, offering flexibility for home and travel use. 2 adjustable airflow levels allow customized treatment. The self-cleaning function ensures easy maintenance and consistent device performance. Available in three modern colors (Gray, Green, Orange). Manufactured in ISO 13485-certified facilities with CE clearance.
Specifications
| Product Specification | |
| Model No. | UN101 |
| Rated Power | < 2 W |
| Operating Vibration Frequency | 110 kHz ± 10% |
| Nebulization Rate | ≥ 0.25 mL/min |
| Mist Particle Size | Approx. 4.0 μm, proportion ≥ 60% |
| Volume | Max. 10 mL |
| Liquid Temperature | ≤ 50°C |
| Noise Level | ≤ 50 dB(A) |
| Power Voltage | DC 3V, USB DC 5V, or built-in DC 3.7V rechargeable lithium battery |
| Material | ABS |
Applications
Product Advantages
Advanced microporous atomization technology.
2 adjustable airflow levels for customized treatment.
Self-cleaning function for easy maintenance.
Sleek ultra-lightweight design (95 g).

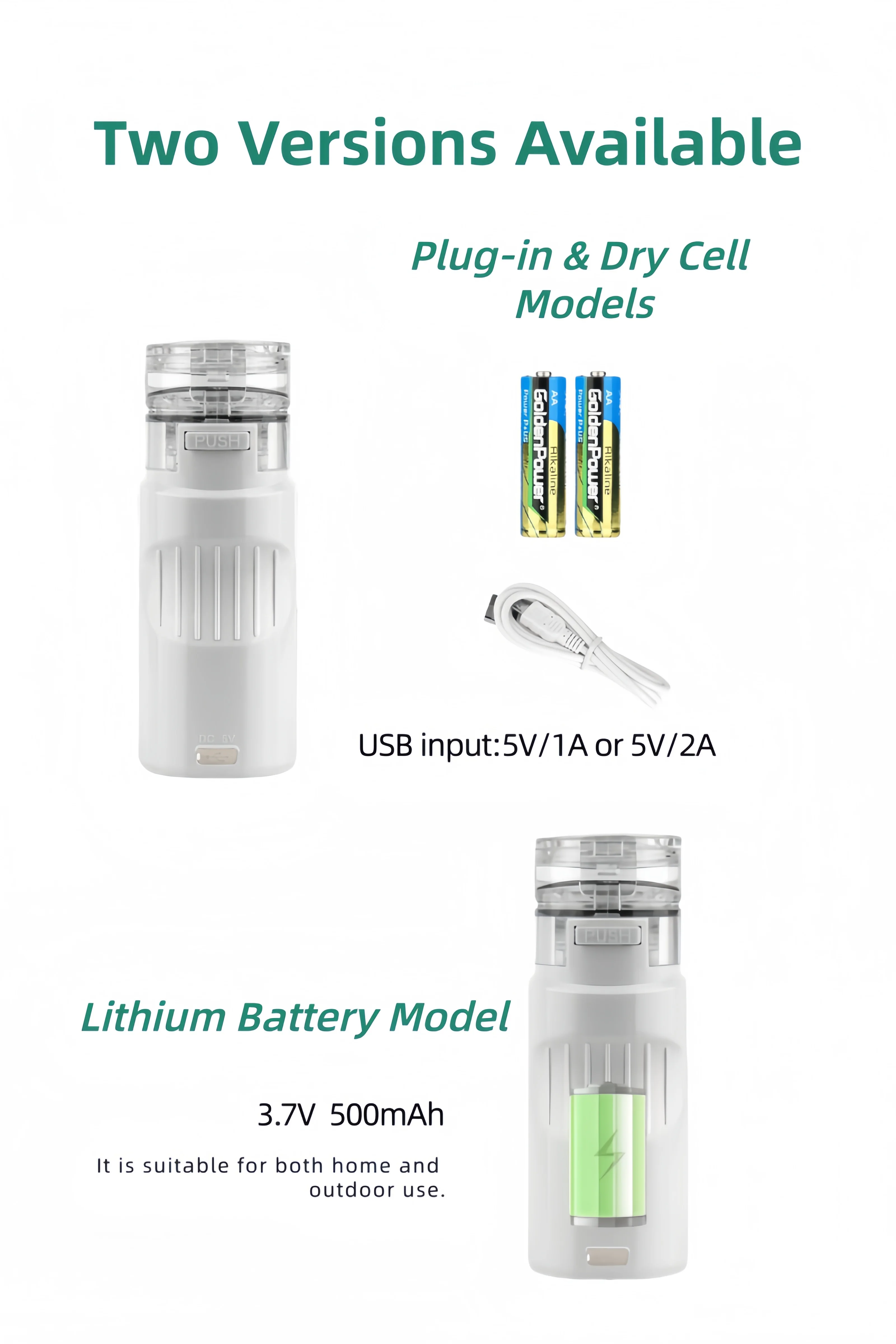

Flexible power: plug-in / dry battery / rechargeable Li-ion.
Multiple color options (Gray/Green/Orange).

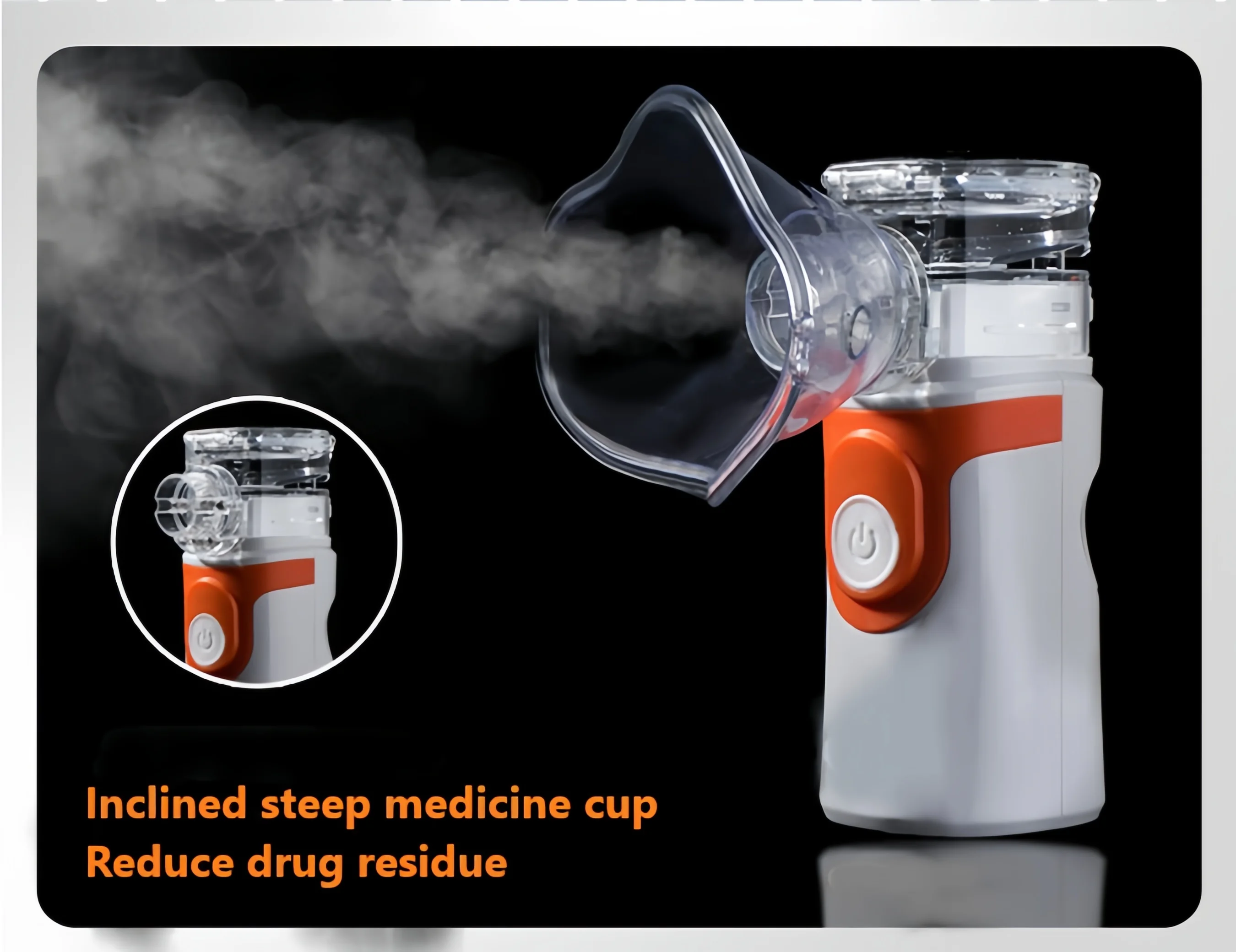

Low medication residual for efficient drug use.

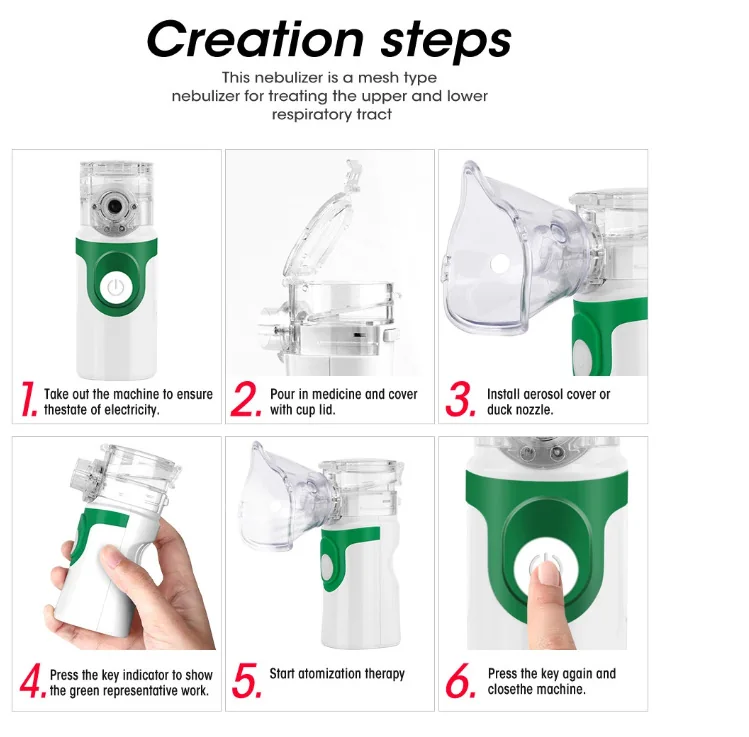

Use Method
Ensure the device is clean and assembled correctly.
Open the medication cup and add the prescribed medication (up to 10 mL maximum).
Choose the desired airflow level (2 levels available).
Press the power button to begin treatment.

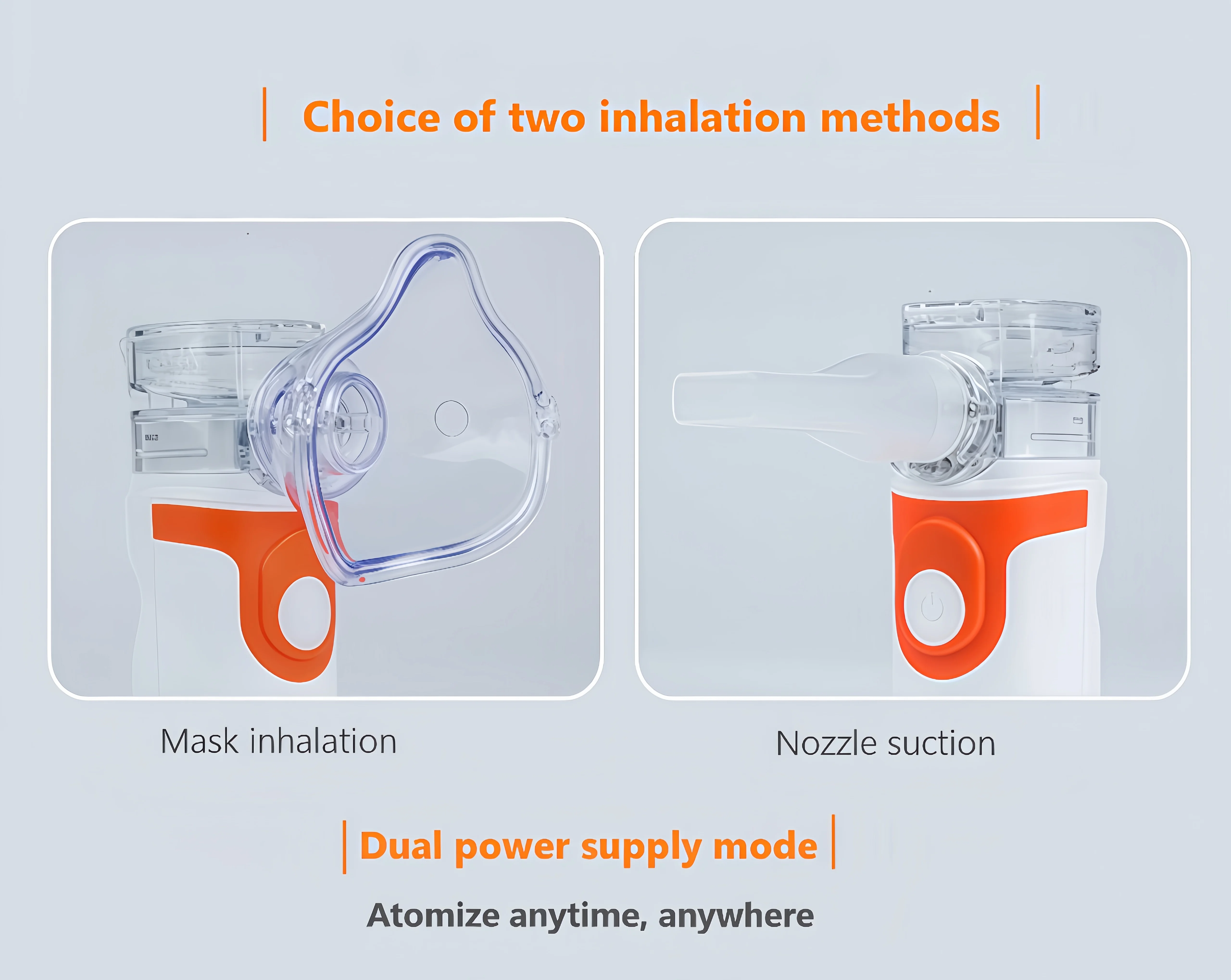

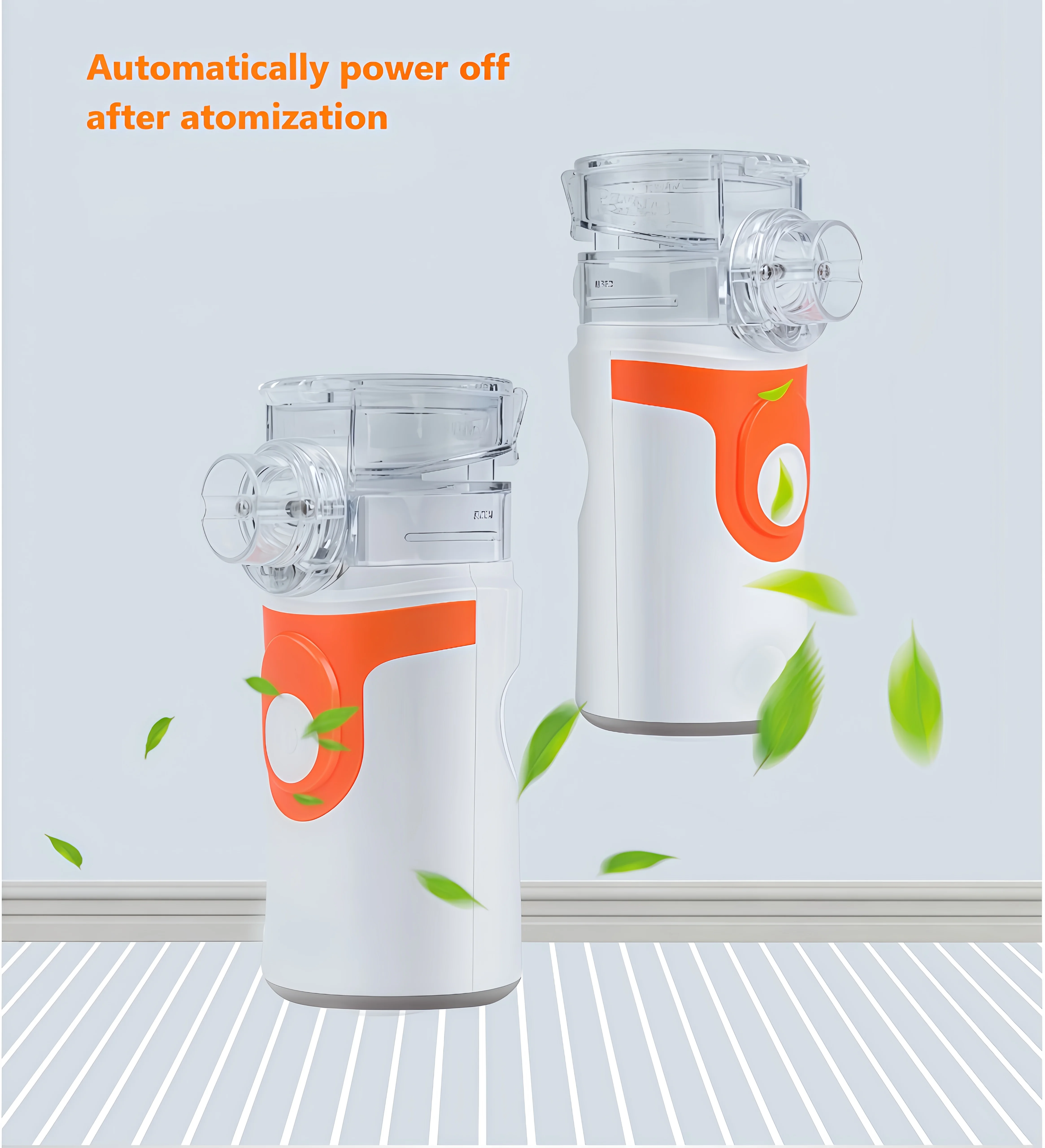

Sit comfortably and breathe normally through the mouthpiece or mask. The device will automatically shut off when medication is complete.
After use, run the self-cleaning mode with clean water or saline to maintain device performance.
Clean the medication cup and mesh plate regularly according to the cleaning instructions.
Packaging Specifications
| Product Carton Specification | |
| Product Size | 67×42×119 mm |
| Net Weight (Device Only) | 95 g |
| Color Box Dimensions | 150×120×70 mm |
| Gross Weight (Color Box Included) | 239 g (Battery Not Included) |
| Carton Dimensions (cm) | 574×300×310 mm |
| Carton Gross Weight | 12.5 kg |
| Pack Qty | 50 pcs/ctn |
