Product Introduction
Our Mesh Nebulizer features advanced microporous atomization technology for quiet, efficient respiratory therapy. Available in two power options (Type-C/dry battery or lithium battery), it offers flexible use at home or on the go. With 2 airflow levels, 3 operating modes (adult, child, self-cleaning), and a compact, portable design, it delivers effective medication delivery for patients of all ages.
The Mesh Nebulizer is indicated for the treatment of respiratory conditions including asthma, bronchitis, COPD, and other upper and lower respiratory tract infections. Advanced microporous atomization technology delivers fine mist particles (MMAD < 5 μm) for effective medication deposition in the lower respiratory tract. Two power options are available: MY-135 (Type-C input & dry battery) and MY-135B (lithium battery), offering flexibility for home and travel use. Three dedicated modes are available: 10-minute rapid nebulization (adults), 20-minute nebulization (children), and 5-minute self-cleaning. 2 adjustable airflow levels allow customized treatment. The LED display shows operating status, and the automatic shut-off feature ensures safe and convenient use. Manufactured in ISO 13485-certified facilities with CE MDR and FDA clearances.
Specifications
| Product Specification | |
| Model No. | MY-135 |
| Operating Vibration Frequency | 110 kHz ± 10 kHz |
| Atomization Rate | ≥ 0.2 mL/min |
| Working Noise Level | ≤ 50 dB(A) |
| Operating Temperature Range | 5°C ~ 40°C |
| Operating Humidity Range | 15–90% RH |
| Cup Capacity | 10 mL |
Applications
Product Advantages
Advanced microporous atomization technology.
3 operating modes: 10 min (adult) / 20 min (child) / 5 min (self-clean).
2 adjustable airflow levels.

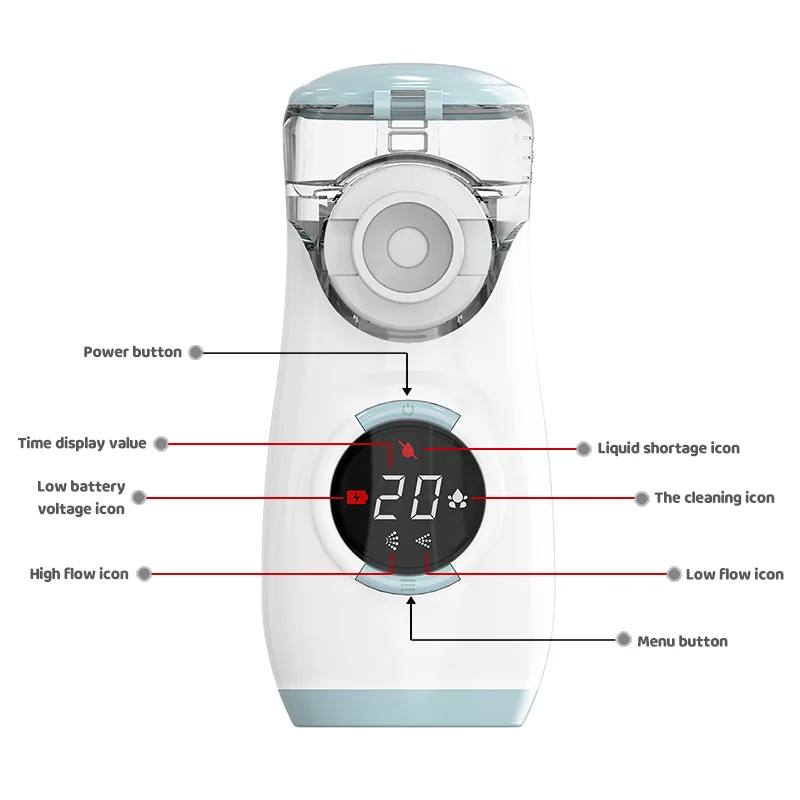

LED display with automatic shut-off.
Self-cleaning function for easy maintenance.
Two power options: Type-C/dry battery or lithium battery.
Ultra-compact and portable design.

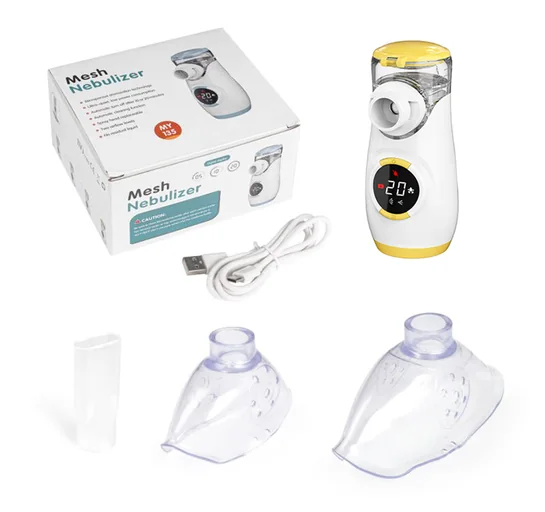

Multiple color options (Blue/Yellow/Green/Gray).
Use Method
Ensure the device is clean and assembled correctly.
Open the medication cup and add the prescribed medication (up to 10 mL maximum).
Press the mode button to select the desired operating mode (Adult / Child / Self-Clean).
Select the desired airflow level (2 levels available).
Press the power button to begin treatment. The LED display will show the operating status.

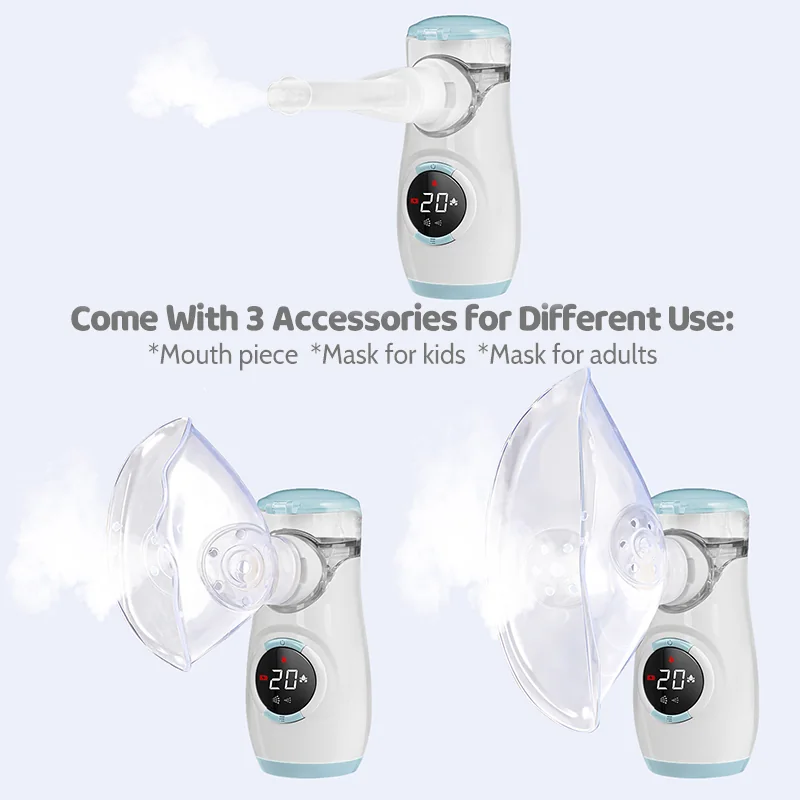

Sit comfortably and breathe normally through the mouthpiece or mask.
The device will automatically shut off when the selected time is complete.
After use, run the self-cleaning mode with clean water or saline to maintain device performance.
Clean the medication cup and mesh plate regularly according to the cleaning instructions.
Packaging Specifications
| Product Carton Specification | |
| Product Size | 52×62×116 mm |
| Net Weight (Device Only) | 90 g – 92 g |
| Color Box Dimensions | 143×73×124 mm |
| Gross Weight (Color Box Included) | 230 g |
| Carton Dimensions (L×W×H, cm) | 44×39.5×38.5 |
| Carton Gross Weight | 12.5 kg |
| Pack Qty | 45 pcs/ctn |
